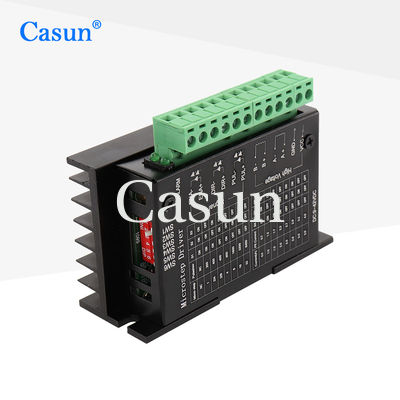

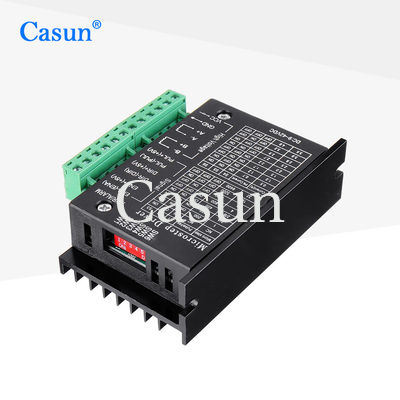

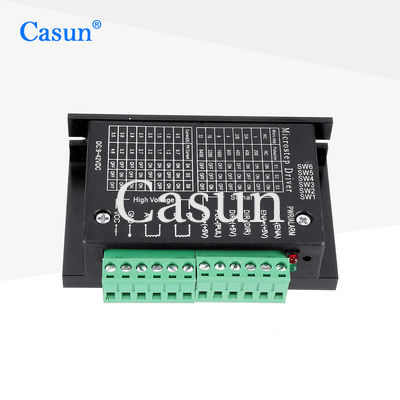

32 Subdivision 4A 42V Pulse 2 Phase Stepper Motor Driver For 3D Printer

32 Subdivision 4A 42V Pulse 2 Phase Stepper Motor Driver For 3D Printer

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	TB6600
MOQ:	1 পিসি
দাম:	$3-$6
পেমেন্ট শর্তাবলী:	L/C, D/A, D/P, T/T
সরবরাহ ক্ষমতা:	5000pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

38X29X18 সেমি

বিশেষভাবে তুলে ধরা:

4A 2 Phase Stepper Motor Driver

42V 2 Phase Stepper Motor Driver

3D Printer Stepper Motor Driver

পণ্য বিবরণ

Product Name	TB6600
Size	965728mm
Supply voltage	9-24V
Color	Black

Specifications:

This drive is an upgraded version of the TB6600, the breakdown of heightening to 32 segments, for high segmentation purposes. Applicable stepper motor: 42,57,86 type of 2-phase 4-phase (4-wire 6 wire line 8)

Micro stp	Pulse/rev	S1	S2	S3
NC	NC	ON	ON	ON
1	200	ON	ON	OFF
2/A	400	ON	OFF	ON
2/B	400	OFF	ON	ON
4	800	ON	OFF	OFF
8	1600	OFF	ON	OFF
16	3200	OFF	OFF	ON
32	6400	OFF	OFF	OFF

Current(A)	PK Current	S4	S5	S6
0.5	0.7	ON	ON	ON
1.0	1.2	ON	OFF	ON
1.5	1.7	ON	ON	OFF
2.0	2.2	ON	OFF	OFF
2.5	2.7	OFF	ON	ON
2.8	2.9	OFF	OFF	ON
3.0	3.2	OFF	ON	OFF
3.5	4.0	OFF	OFF	OFF

Features:

Suitable for stepping motor: 42-phase, 47-phase and 86-phase (4-wire, 6-wire and 8-wire)

1, 9V-42V DC power supply;

2, H-bridge bipolar constant-phase flow-driven;

3, the maximum output current of 4.0A eight optional;

4, up to 32 segments of six kinds of sub-modes available;

5, the input signal is high-speed optical isolation.

6, standard common anode single pulse interface;

7, offline hold function;

8, semi-enclosed chassis can accommodate more demanding environment;

9, provide energy semiautomatic current lock function;

10, built-in thermal protection and overcurrent protection.
