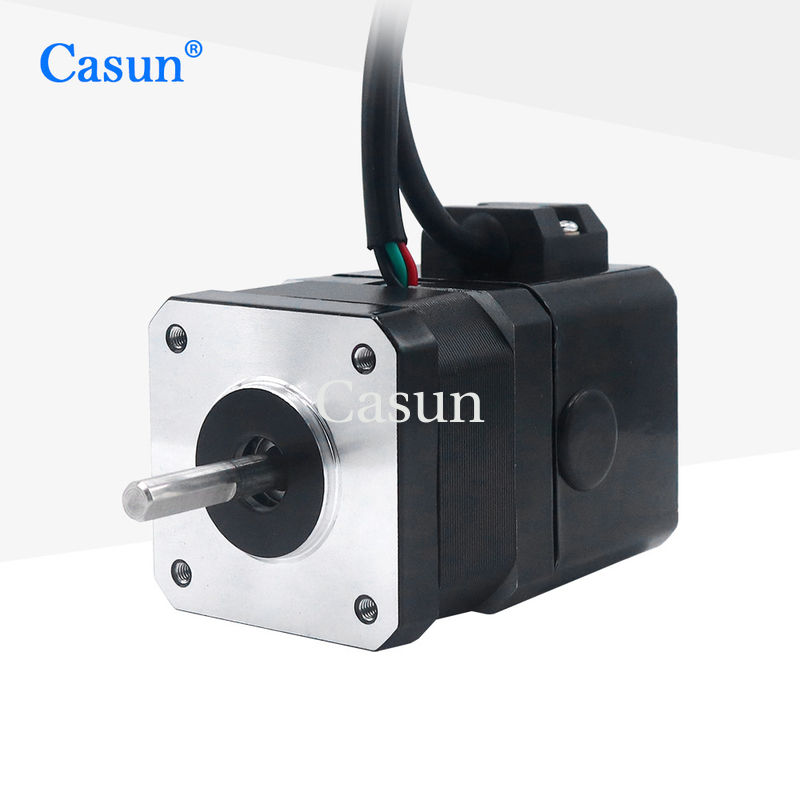

Nema 17 Stepper Motor 12V 42X42X34mm for Casun Brake

Nema 17 Stepper Motor 12V 42X42X34mm for Casun Brake

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	42SHD4034-24BH-HP42
MOQ:	1 পিসি
দাম:	$37-$41
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Casun Brake Stepper Motor

Casun Nema 17 Stepper Motor 12V

42X42X34mm Brake Stepper Motor

পণ্য বিবরণ

In a range of sizes, the 42mm Hybrid Stepper Motor Series provides strong holding torque.

To lessen vibration and produce a greater step resolution, use with a microstepping driver.

Select a standard version or ask for a specially configured version.

Features:

Versions in unipolar or bipolar are offered.
Hybrid stepper building
Available in variations with a single or double shaft
Within 48 hours, one of our engineers will contact you with the best option.
Hybrid stepper building

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	300mN.m
Resistance	5.0 om
Inductance	6.2 mH
Rotor Inertia	38 g-cm²
Motor weight	0.42 kg
Number of leads	4
Connection	Bipolar

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Casun Model	General Model	Step Angle	Motor Length	Rated Current	Holding Torque
0.9° Degree
42SHB4002-17	17HM08-1204S	0.9°	20mm	1.2 A	0.11 N.m
42SHB0303-22	_	0.9°	34mm	0.5A	0.24 N.m
42SHB0509-24B	17HM15-0904S	0.9°	40mm	0.9 A	0.35 N.m
42SHB4608-24B1	17HM19-2004S	0.9°	48mm	2.0 A	0.46 N.m
1.8° Degree
42SHD4950-20B	17HS08-1004S	1.8°	20mm	1.0 A	0.13 N.m
45SHD0513-20B	_	1.8°	26mm	1.2A	0.26N.m
42SHD0008-24	17HS-0316S	1.8°	34mm	0.3 A	0.16 N.m
42SHD4003-20B	17HS13-0404S1	1.8°	34mm	0.4 A	0.26 N.m
42SHD4046-24	17HS13-1334S	1.8°	34mm	1.33 A	0.22 N.m
42SHD0217-24B	17HS4401	1.8°	40mm	1.5 A	0.5 N.m
42SHD0192-24B	17HS15-1504S1	1.8°	40mm	1.5 A	0.45 N.m
42SHD0134-22B	17HS15-1704S	1.8°	40mm	1.7 A	0.44 N.m
42SHD0285-24B	17HS15-0404S	1.8°	40mm	0.4 A	0.4 N.m
42SHD4425-24B	17HS19-2004S1	1.8°	48mm	2.0 A	0.59 N.m
42SHD4463-24B	42BYGHW811	1.8°	48mm	2.5 A	0.48 N.m
42SHD0450-20BH	17HS8401S	1.8°	48mm	1.8A	0.52N.m
42SHD4813-24B	17HS24-2104S	1.8°	60mm	2.1 A	0.8 N.m

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 17 Stepper Motor 12V 42X42X34mm for Casun Brake 1

Please click the "Get a quote" button below to tell us your requirements.

ট্যাগ:

42X42X34mm Brake Stepper Motor

Casun Nema 17 Stepper Motor 12V

Casun Brake Stepper Motor
