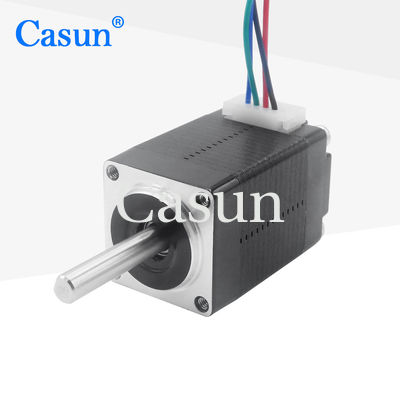

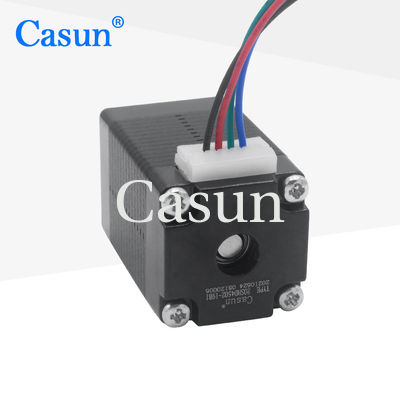

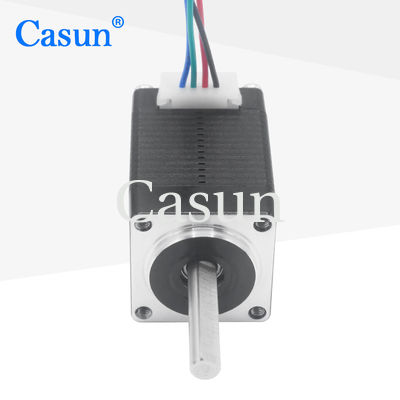

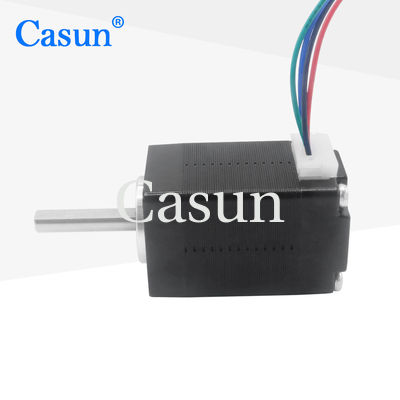

21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires

21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	20SHD4502-19B1
MOQ:	1 পিসি
দাম:	$5.94-$8.6
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

21mN.m

কারেন্ট:

0.8A

মোটর দৈর্ঘ্য:

33 মিমি

খাদ:

মিলিং ফ্ল্যাট খাদ 19 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Bipolar NEMA 8 Stepper Motor

21mNM NEMA 8 Stepper Motor

NEMA 8 1.8 Deg Stepper Motor

পণ্য বিবরণ

The 20mm base stepper motor has a simple structure, therefore it has high reliability and stability.

Medical and scientific equipment, Wearable technology, machine vision and 3D printers.

Features:

High accuracy and torque
Offer custom services
Available in single or double shaft versions
Different situations may call for a particular stepper motor model
The best solution will be offered by our engineers in contact with you within 48 hours

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	21 mN.m
Resistance	4.5 ohm
Inductance	1.6 mH
Rotor Inertia	2.5 g-cm²
Motor weight	0.07 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
