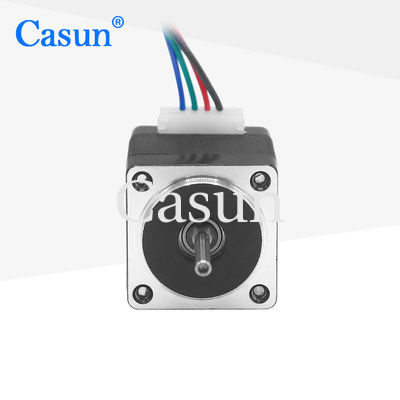

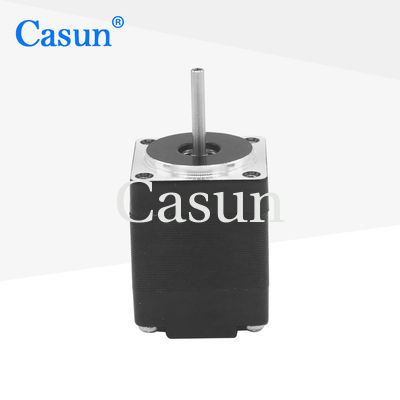

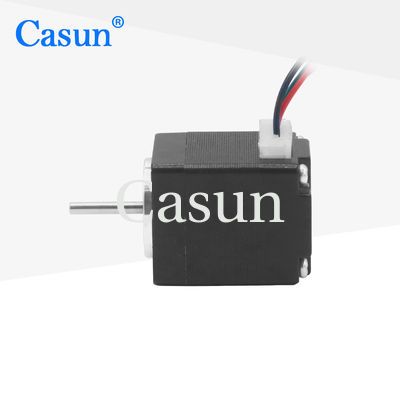

10mNm 4 Wire Bipolar Stepper Motor 5V 0.24A Nema 8 Motor 20x20x25mm

10mNm 4 Wire Bipolar Stepper Motor 5V 0.24A Nema 8 Motor 20x20x25mm

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	B20SHD4701-14P
MOQ:	1 পিসি
দাম:	$5.94-$8.6
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

10mN.m

কারেন্ট:

0.24A

মোটর দৈর্ঘ্য:

24.8 মিমি

খাদ:

বৃত্তাকার খাদ 14 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

10mNm 4 Wire Bipolar Stepper Motor

4 Wire Bipolar Stepper Motor 5V

5V 0.24A Nema 8 Motor

পণ্য বিবরণ

Nema 8 Bipolar 1.8deg 10mN.m (1.42oz.in) Stepper Motor 0.24A 5.04V 20x20x25mm 4 Wires

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.24 A
Holding Torque	10 mN.m
Resistance	21 ohm
Inductance	5 mH
Rotor Inertia	2 g-cm²
Motor weight	0.08 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
