0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor

0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	B20SHD4252-10P
MOQ:	1 পিসি
দাম:	$5.94-$8.6
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

40mN.m

কারেন্ট:

0.6A

মোটর দৈর্ঘ্য:

38.2 মিমি

খাদ:

বিশেষ খাদ 9.8 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

0.6A 6V NEMA 8 Stepper Motor

NEMA 8 Stepper Motor 40mNm

40mNm 2 Phase Bipolar Stepper Motor

পণ্য বিবরণ

The 28mm base stepper motor can accurately control the position according to the predetermined step size, achieving high-precision positioning and motion control.

Make it very useful in many applications, such as printers, robots, automation equipment, etc.

Features:

High accuracy and torque
Manufacturing with expertise in research and developmen
Available in single or double shaft versions
We accept contract manufacturing and provide bespoke services
Each model of stepper motor can be suitable for different scenarios

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	40 mN.m
Resistance	10 ohm
Inductance	4.5 mH
Rotor Inertia	4.5 g-cm²
Motor weight	0.1 kg
Number of leads	4
Connection	Bipolar

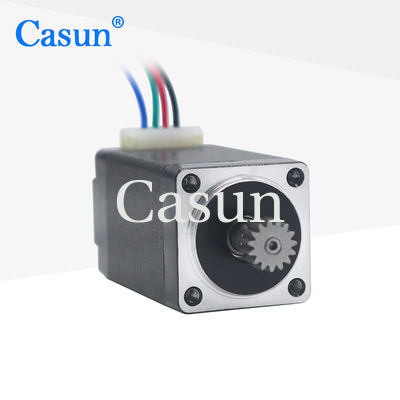

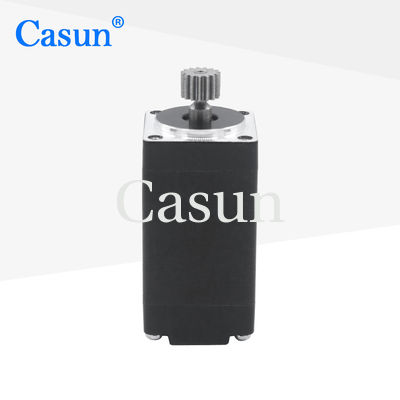

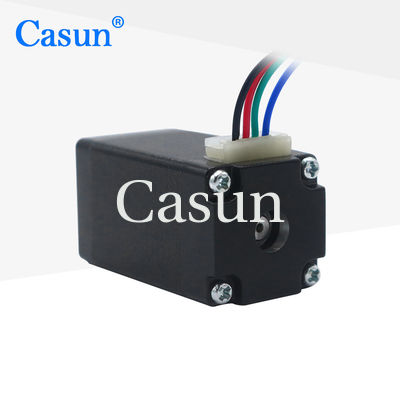

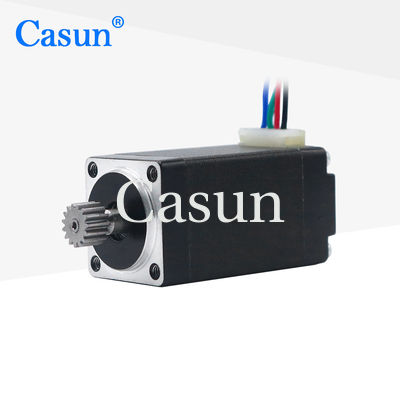

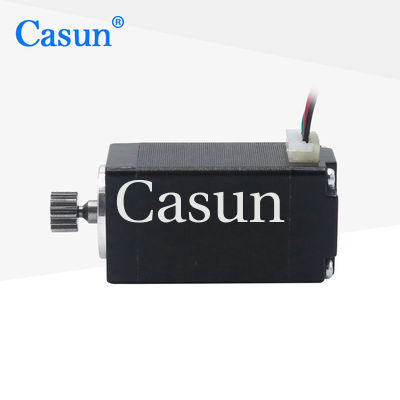

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
