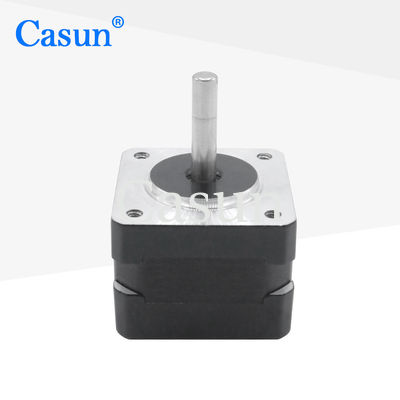

35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera

35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	35SHD0003-23H
MOQ:	1 পিসি
দাম:	$4.14-$6.98
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

110mN.m

কারেন্ট:

0.4a

মোটর দৈর্ঘ্য:

26 মিমি

খাদ:

বৃত্তাকার খাদ 23 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

26mm 2 Phase Hybrid Stepper Motor

35x35 Hybrid Stepper Motor

Casun Hybrid Stepper Motor 12V

পণ্য বিবরণ

NEMA 14 stepper motors typically have higher resolution and accuracy, enabling more precise position control.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
We accept contract manufacturing and provide bespoke services
Offered in single- and double-shaft configurations
CE and RoHS approved
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	110 mN.m
Resistance	30 ohm
Inductance	24 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
