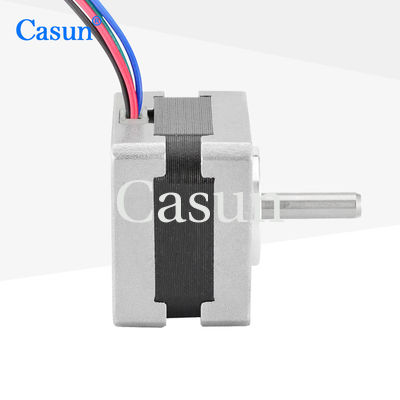

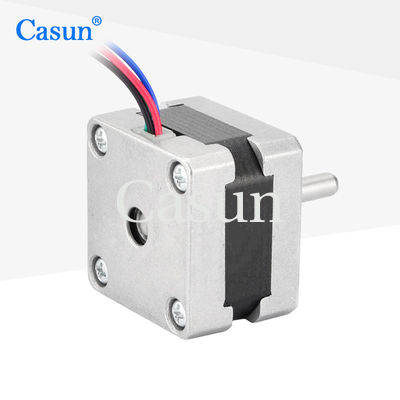

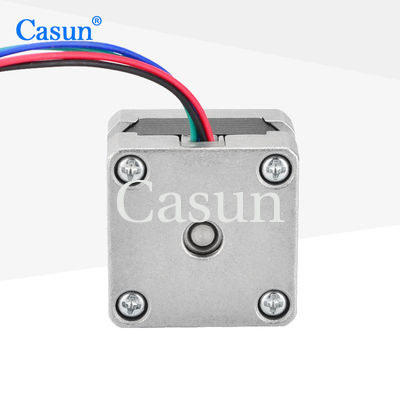

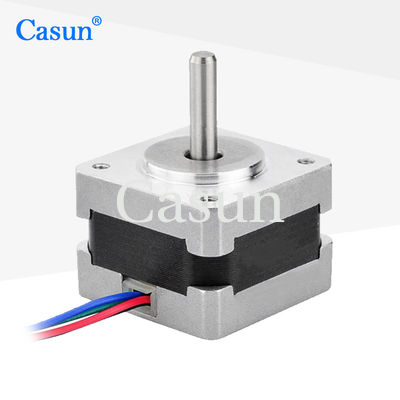

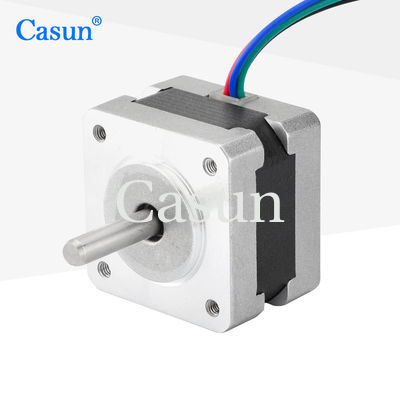

0.4A 12V Stepper Motor High Torque 110 MNm 12V Bipolar Stepper Motor

0.4A 12V Stepper Motor High Torque 110 MNm 12V Bipolar Stepper Motor

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	35SHD0003-30
MOQ:	1 পিসি
দাম:	$4.14-$6.98
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

110mN.m

কারেন্ট:

0.4a

মোটর দৈর্ঘ্য:

26 মিমি

খাদ:

বৃত্তাকার খাদ 30 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

0.4A 12V Stepper Motor High Torque

12V Stepper Motor High Torque 110 mNm

Casun 12V Bipolar Stepper Motor

পণ্য বিবরণ

The 35mm Hybrid Stepper Motor Series can quickly start and stop, suitable for applications that require quick response and action.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

Bipolar or unipolar versions available
Versions in unipolar or bipolar are offered
Available in variations with a single or double shaft
Deliver "multiple international certifications" for electrical and high-tech devices
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	110 mN.m
Resistance	30 ohm
Inductance	24 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
