0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera

0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	35SHD4021-20
MOQ:	1 পিসি
দাম:	$4.14-$6.98
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

100mN.m

কারেন্ট:

0.7 এ

মোটর দৈর্ঘ্য:

26 মিমি

খাদ:

বৃত্তাকার খাদ 20 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

100mNm 2 Phase Unipolar Stepper Motor

0.4A 2 Phase Unipolar Stepper Motor

Surveillance Camera Unipolar Stepper Motor

পণ্য বিবরণ

Despite its relatively small size, the 35mm stepper motor can still provide a relatively high power output.

Water pumps, electronic door locks, image scanners, and fine positioning devices are examples of small automation systems

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
Every stepper motor model has use in a variety of situations
Ten-year warranty and purchase with confidence

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.7 A
Holding Torque	100 mN.m
Resistance	6.5 ohm
Inductance	6.0 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

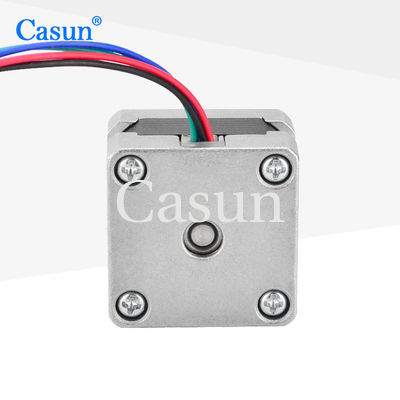

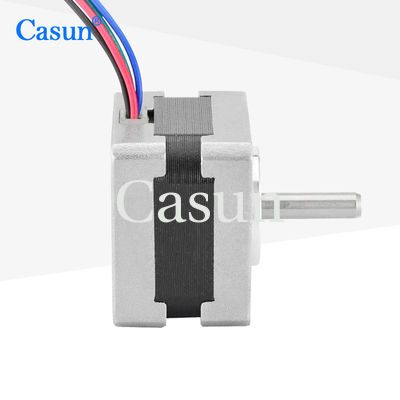

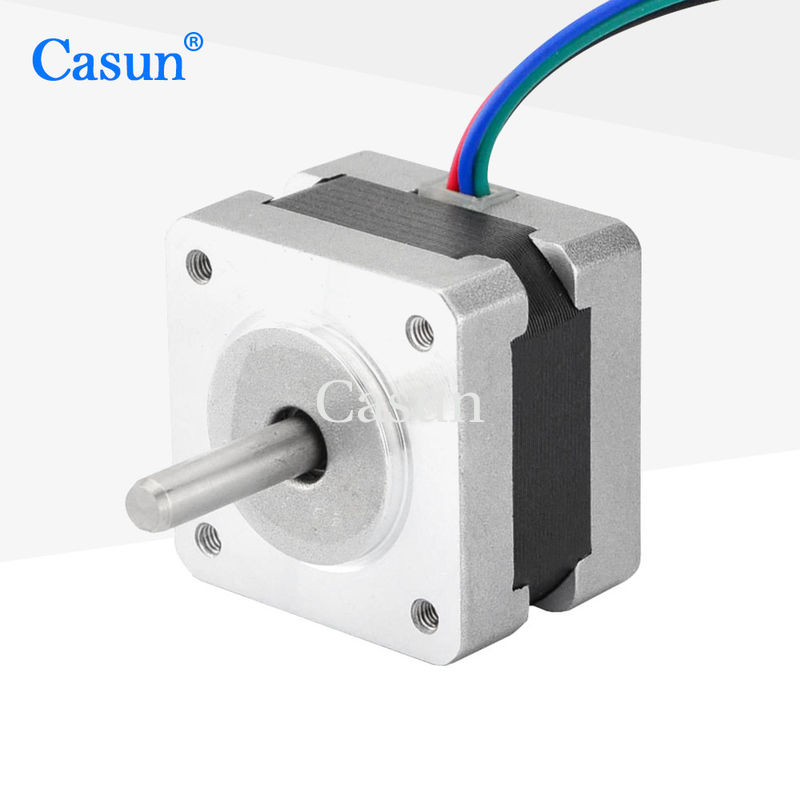

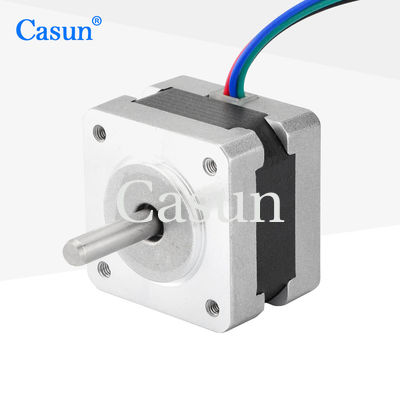

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
