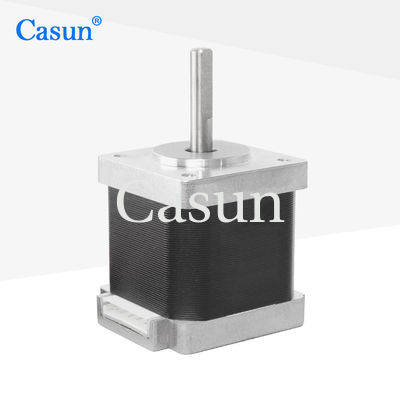

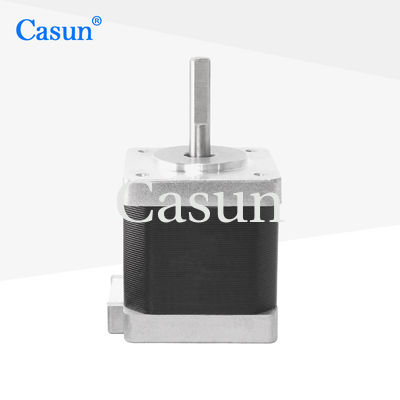

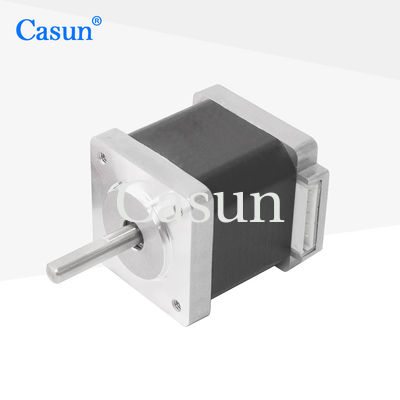

350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS

350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	P35SHD0808-20B
MOQ:	1 পিসি
দাম:	$4.14-$6.98
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

350mN.m

কারেন্ট:

0.4a

মোটর দৈর্ঘ্য:

40 মিমি

খাদ:

মিলিং ফ্ল্যাট খাদ 20 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

33 ohm Stepper Motor 1.8 Step Angle

350mNm Stepper Motor

350mNm Two Phase Stepper Motor

পণ্য বিবরণ

The 35mm stepper motor can rotate at a small step angle and accurately locate the desired position.

Small automation systems, water pumps, electric door locks, image scanners, and precision positioning tools

Features:

Within 48 hours, one of our engineers will contact you with the best option
Offer specialised services
Available in single or double shaft versions
Ten-year warranty and secure shopping
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	350 mN.m
Resistance	33 ohm
Inductance	42 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
