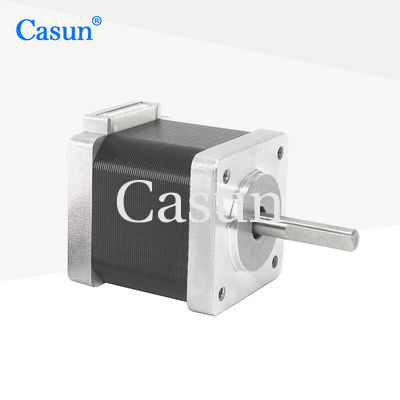

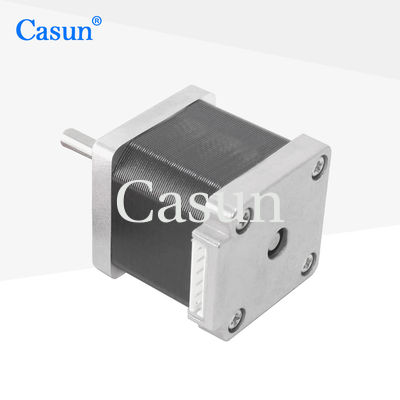

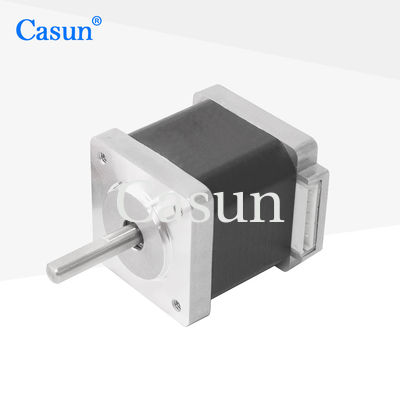

Casun 35mm Hybrid Stepper Motor NEMA 14 Stepper Motor For Stage Lighting

Casun 35mm Hybrid Stepper Motor NEMA 14 Stepper Motor For Stage Lighting

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	35SHD0810-24B
MOQ:	1 পিসি
দাম:	$4.14-$6.98
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

220mN.m

কারেন্ট:

1.2A

মোটর দৈর্ঘ্য:

40 মিমি

খাদ:

মিলিং ফ্ল্যাট খাদ 24 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Casun 35mm Hybrid Stepper Motor

Casun NEMA 14 Stepper Motor

35mm NEMA 14 Stepper Motor

পণ্য বিবরণ

The 35mm stepper motor has excellent controllability and can precisely control its motion characteristics using a simple electronic driver.

Printers, scanners, robotics, automation equipment, medical equipment, industrial equipment

Features:

Bipolar or unipolar versions available
Manufacturing with expertise in research and development
More than 800 clients have been served over its 12 years of operation in China
CE and RoHS approved
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	220 mN.m
Resistance	4.0 ohm
Inductance	7.0 mH
Rotor Inertia	18 g-cm²
Motor weight	0.21 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
