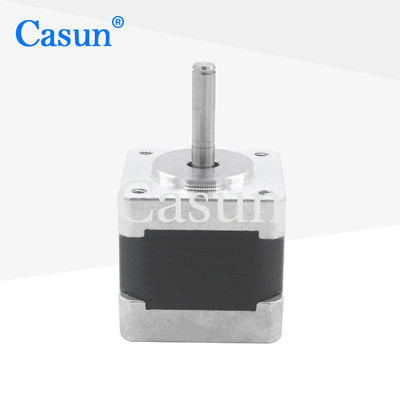

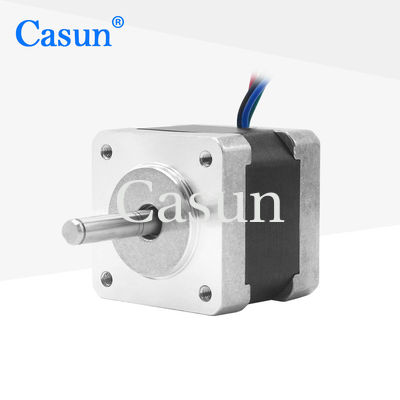

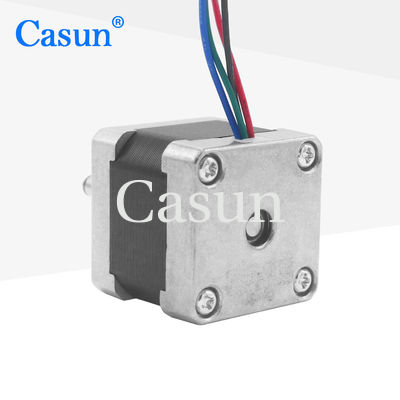

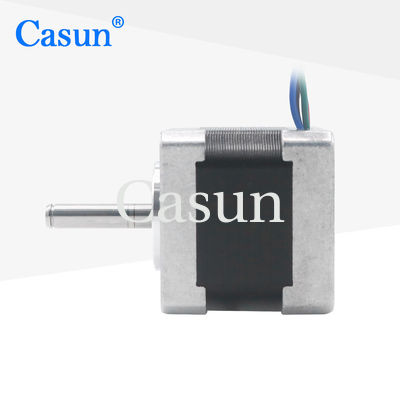

100mNm Casun Stepper Motor 2 Phase 4 Wire For Monitoring Equipment

100mNm Casun Stepper Motor 2 Phase 4 Wire For Monitoring Equipment

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	P35SHD4119-24P
MOQ:	1 পিসি
দাম:	$4.14-$6.98
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

100mN.m

কারেন্ট:

0.4a

মোটর দৈর্ঘ্য:

34 মিমি

খাদ:

বিশেষ খাদ 24 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Casun Stepper Motor 2 Phase 4 Wire

100mNM Casun Stepper Motor

100mNm Stepper Motor 2 Phase

পণ্য বিবরণ

The 35mm stepper motor also has good speed response, which can quickly and smoothly change the motion state.

Image scanners, electronic door locks, water pumps, small automation systems, and precise positioning devices

Features:

Bipolar or unipolar versions available
Each stepper motor model has use in a variety of situations
Our engineers will be in touch within 48 hours to provide the best solution
CE and RoHS approved
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.75 A
Holding Torque	230 mN.m
Resistance	6.4 ohm
Inductance	8.9 mH
Rotor Inertia	14 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
