42SHD4239 2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm Body 450mN.m For Robot DIY Machine

42SHD4239 2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm Body 450mN.m For Robot DIY Machine

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	42SHD4239-19BH
MOQ:	1 পিসি
দাম:	$3.14-$5
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

450mN.m

কারেন্ট:

1.7A

মোটর দৈর্ঘ্য:

40 মিমি

খাদ:

মিলিং ফ্ল্যাট খাদ 19 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

2 Phase NEMA 17 Stepper Motor

40mm body NEMA 17 Stepper Motor

450mN.m NEMA 17 Stepper Motor

পণ্য বিবরণ

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

High torque and high precision
Accept contract manufacturing
Available in single or double shaft versions
Professional research and development manufacturing
Established in China for 12 years and has served more than 800 customers

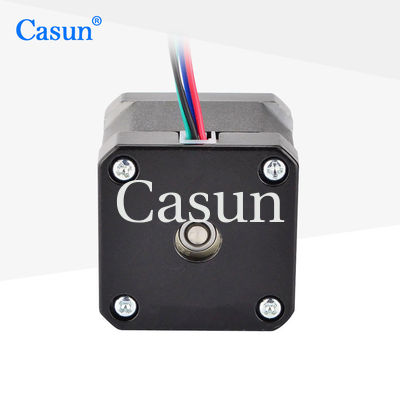

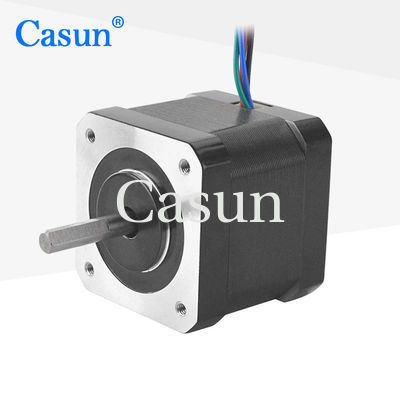

Appearance

42SHD4239 2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm Body 450mN.m For Robot DIY Machine 0

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	1.7 A
Holding Torque	450 mN.m
Resistance	1.43 ohm
Inductance	2.75 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
