Unipolar Nema 17 Cnc Router 1.7A 60mm 3018 Cnc Stepper Motor

Unipolar Nema 17 Cnc Router 1.7A 60mm 3018 Cnc Stepper Motor

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	42SHD0828-24B
MOQ:	1 পিসি
দাম:	$3.14-$5
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

650mN.m

কারেন্ট:

1.7A

মোটর দৈর্ঘ্য:

60 মিমি

খাদ:

মিলিং ফ্ল্যাট খাদ 24 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Unipolar Nema 17 Cnc Router

60mm 3018 Cnc Stepper Motor

Nema 17 Cnc Router 1.7A

পণ্য বিবরণ

Among various analytical instruments in the laboratory, the NEMA 17 stepper motor is used to move sample trays, adjust lens focal length, and so on.

NEMA 17 stepper motors typically have lower costs.

Features:

High torque and high precision
For high-tech industry and electronic industry equipment
Backed by a 10-year warranty for your confident purchase
Provide "multiple international certifications"
Expert in drivetrain solutions

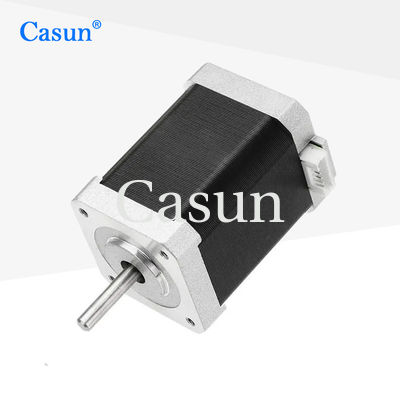

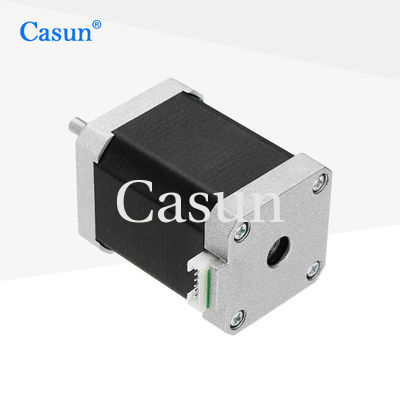

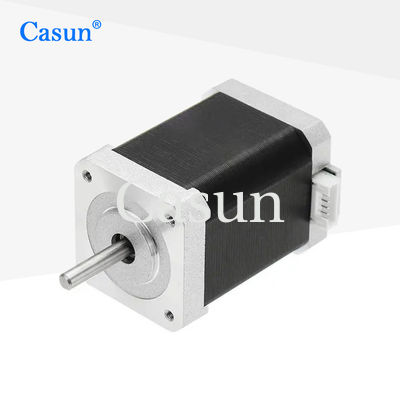

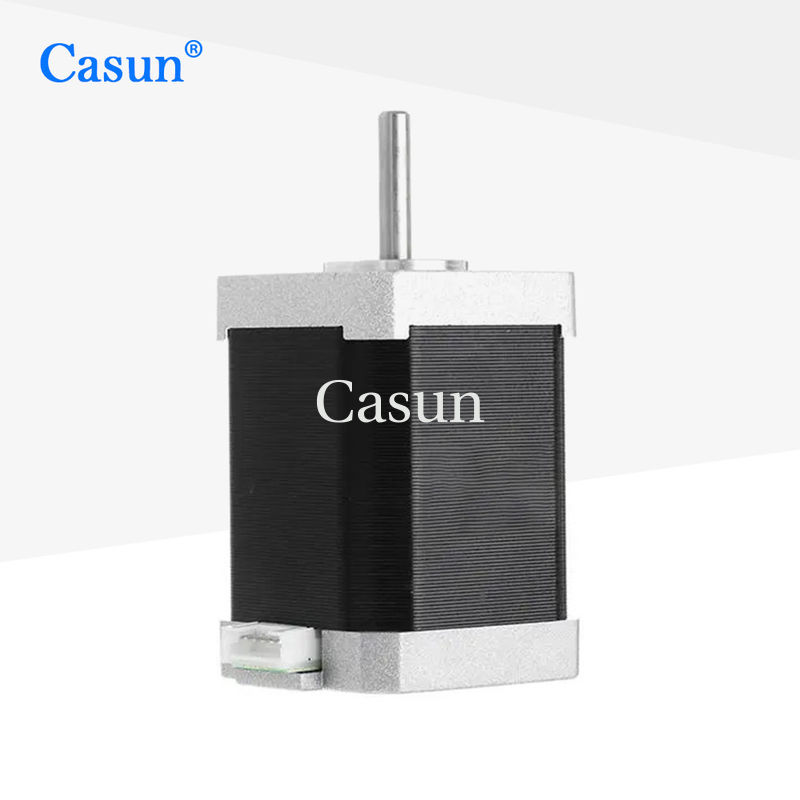

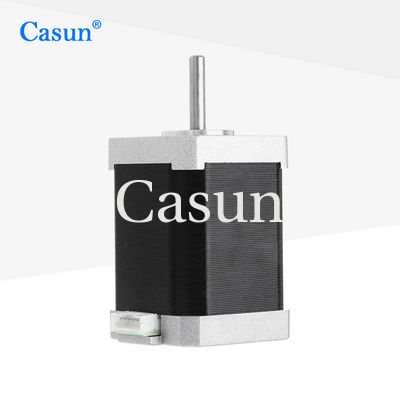

Appearance

Unipolar Nema 17 Cnc Router 1.7A 60mm 3018 Cnc Stepper Motor 0

Dimensions

Unipolar Nema 17 Cnc Router 1.7A 60mm 3018 Cnc Stepper Motor 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.7 A
Holding Torque	650 mN.m
Resistance	1.5 ohm
Inductance	2.8 mH
Rotor Inertia	102 g-cm²
Motor weight	0.48 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
