পণ্যের বিবরণ

Created with Pixso. বাড়ি Created with Pixso. পণ্য Created with Pixso.
Close Loop Stepper Motor
Created with Pixso.

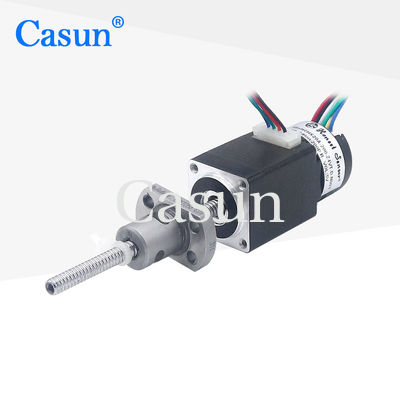

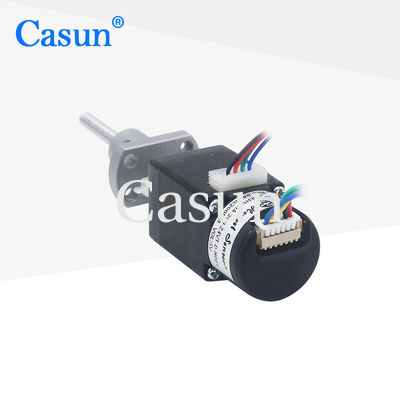

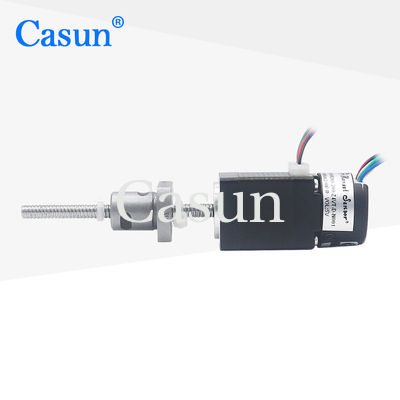

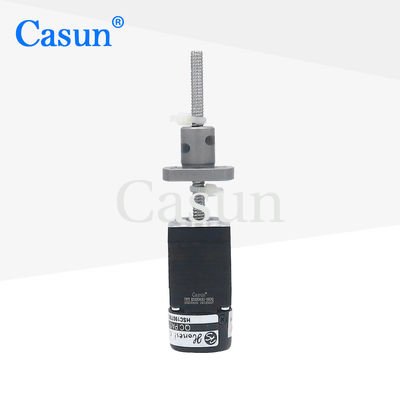

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder

নাম

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder

ব্র্যান্ড নাম: Casun
মডেল নম্বর: B20SHD4351-56GPQ
MOQ: 1 পিসি
দাম: $20-$28
পেমেন্ট শর্তাবলী: D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা: 40000+Pcs+মাস
বিস্তারিত তথ্য
পণ্য বিবরণ
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
CE,ROHS,ISO
স্টেপ এঞ্জেল:
1.8°
টর্ক ধরে রাখা:
450mN.m
কারেন্ট:
0.5
মোটর দৈর্ঘ্য:
27.5 মিমি
খাদ:
বল স্ক্রু 55.5 মিমি
কাস্টমাইজড:
মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।
প্যাকেজিং বিবরণ:
শক্ত কাগজ: 38x29x18cm
বিশেষভাবে তুলে ধরা:

27.5mm NEMA 8 Close Loop Motor

,

20×20×27.5mm NEMA 8

,

NEMA 8 Stepper Motor With Encoder

পণ্য বিবরণ

Features:

  • Accept contract manufacturing

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • High torque and high precision

  • Established in China for 12 years and has served more than 800 customers





Motor Specifications



Step Angel

1.8 °

Fram Size

20 mm

Number of Phase

2 Phase

Rated Current

0.5 A

Holding Torque

14 mN.m

Resistance

5.5 ohm

Inductance

1.5 mH

Rotor Inertia

2 g-cm²

Motor weight

0.08 kg

Number of leads

4

Connection

Bipolar

Appearance

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 0

Dimensions

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves







Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 2 20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 3 20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 4 20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 5



Please click the "Get a quote" button below to tell us your requirements.
