0.75A 4.8V Nema 14 3D Printer Stepper Motor 35x35mm 230mN.M

0.75A 4.8V Nema 14 3D Printer Stepper Motor 35x35mm 230mN.M

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	P35SHD4119-24P
MOQ:	1 পিসি
দাম:	$4.2-$5.2
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

230mN.m

কারেন্ট:

0.75A

মোটর দৈর্ঘ্য:

34 মিমি

খাদ:

বৃত্তাকার খাদ 23.69 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Nema 14 3D Printer Stepper Motor

0.75A 4.8V Nema 14

35x35mm 3D Printer Stepper Motor

পণ্য বিবরণ

Nema 14 Hybrid stepper motor 35x35mm 0.75A 4.8V 230mN.m for 3D printer

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.75A
Holding Torque	230 mN.m
Resistance	6.4 ohm
Inductance	8.9mH
Rotor Inertia	14 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

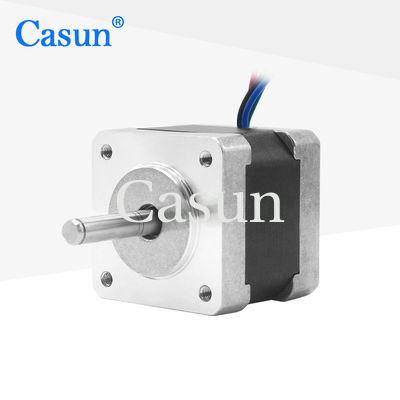

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
