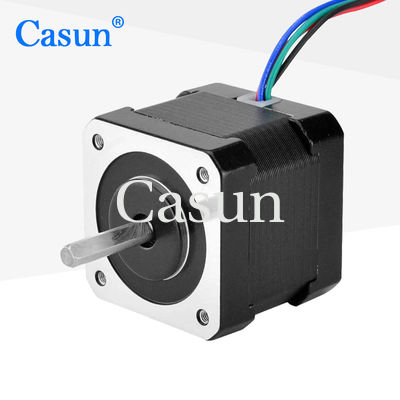

Nema17 Low price stepping motor voltage 3.75V 1.5Amp 500mN.m 0.24kg stepping motor for Sewing machine

Nema17 Low price stepping motor voltage 3.75V 1.5Amp 500mN.m 0.24kg stepping motor for Sewing machine

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	42SHD4217-24B
MOQ:	1 পিসি
দাম:	$5.0-$6.2
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

500mN.m

কারেন্ট:

1.5a

মোটর দৈর্ঘ্য:

40 মিমি

খাদ:

বৃত্তাকার খাদ 20 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

500mN.m Nema17 Stepping Motor

1.5Amp Nema17 Stepping Motor

3.75V Nema17 Stepping Motor

পণ্য বিবরণ

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	1.5A
Holding Torque	500mN.m
Resistance	2.2ohm
Inductance	5mH
Rotor Inertia	57 g-cm²
Motor weight	0.24kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
