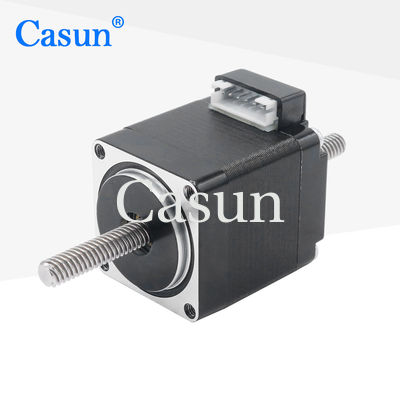

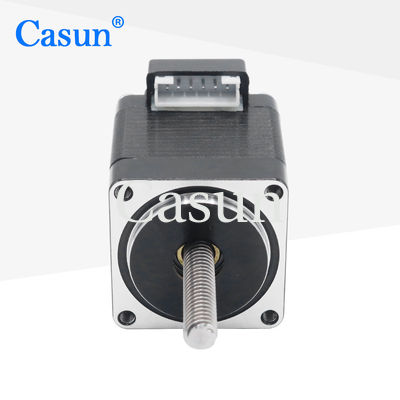

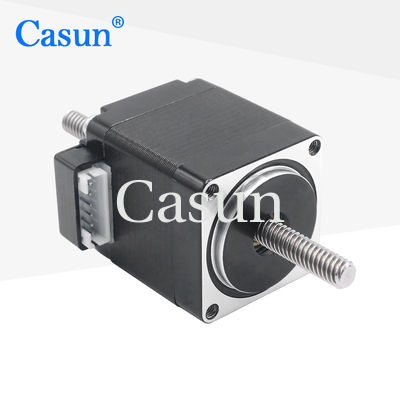

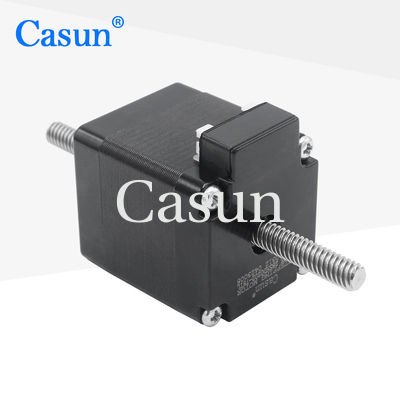

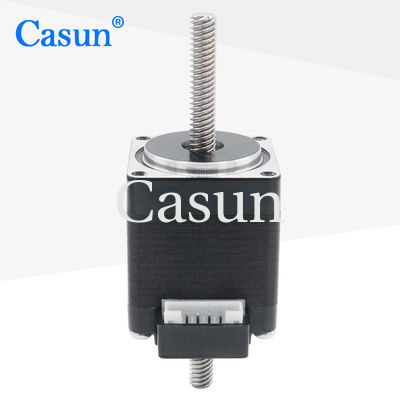

282833mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment

282833mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	28SHD0202-75TL
MOQ:	1 পিসি
দাম:	$9.94-$12.8
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

শরীর:

33 মিমি

কারেন্ট:

0.67Amp

টর্ক ধরে রাখা:

50mN.m

ভোল্টেজ:

3.75 ভিডিসি

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 38x29xc14 মি

বিশেষভাবে তুলে ধরা:

NEMA 11 Linear Stepper Motor

Linear Stepper Motor 0.67A

পণ্য বিবরণ

The linear screw stepper motor has the characteristic of strong programmability, and its motion state and parameters can be controlled through programming.

Medical and scientific equipment, as well as household appliances, image scanners, and car navigation.

Features:

Bipolar or unipolar versions available
Professional research, development, and manufacturing
With 12 years of operations in China, we have successfully served more than 800 customers
Specializing in delivering personalized services is our area of expertise
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	28mm
Number of Phase	2 Phase
Rated Current	0.67Amp
Holding Torque	50 mN.m
Resistance	5.6 ohm
Inductance	3.9mH
Rotor Inertia	9g-cm²
Motor weight	0.12kg
Lead Screw	Tr5X4
Connection	Bipolar

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment 1

Please click the "Get a quote" button below to tell us your requirements.
