NEMA11 Hybrid Stepper Motor Holding Torque 60mN.M 35x32mm For Beauty Equipment

NEMA11 Hybrid Stepper Motor Holding Torque 60mN.M 35x32mm For Beauty Equipment

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	28SHD4202-10B
MOQ:	1 পিসি
দাম:	$6.9-$10
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

60mN.m

কারেন্ট:

0.67A

মোটর দৈর্ঘ্য:

32 মিমি

খাদ:

ডি-শ্যাফ্ট 15 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

NEMA11 Hybrid Stepper Motor

Holding Torque 60mN.M Hybrid Stepper Motor

পণ্য বিবরণ

NEMA11 Hybrid stepper motor motor de passo Holding torque 60mN.m 35x32mm stepping motor for beauty equipment

Nema 11 Casun hybridstepper motor 0.67A 3.75V 60mN.m high frequency Stepping motor for ATM robot arm

28X32mm 0.67A Casun Stepper Motor Nema 11 Micro Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67A
Holding Torque	60mN.m
Resistance	-ohm
Inductance	-mH
Rotor Inertia	-g-cm²
Motor weight	0.18 kg
Number of leads	4
Connection	Bipolar

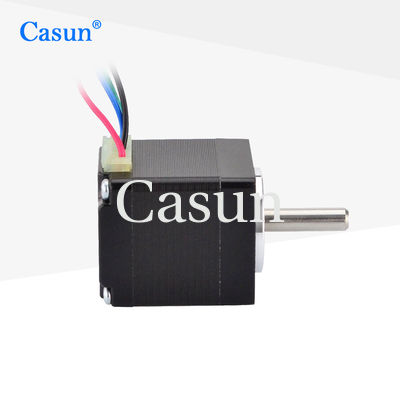

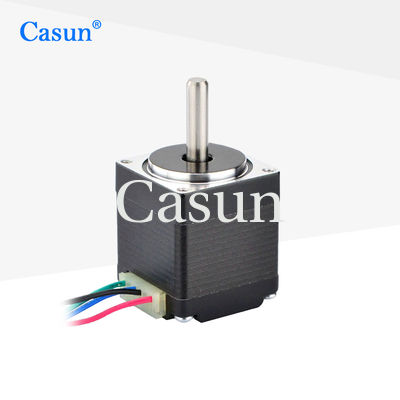

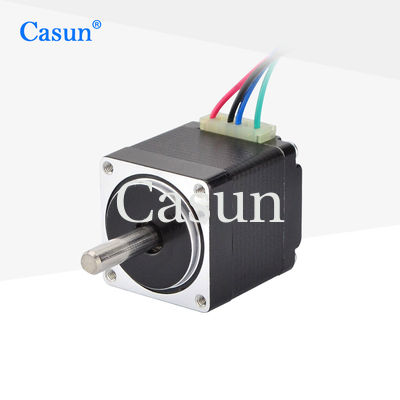

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
