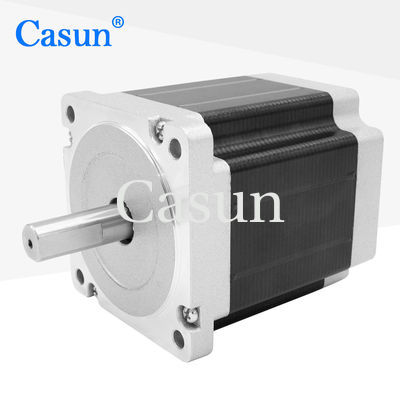

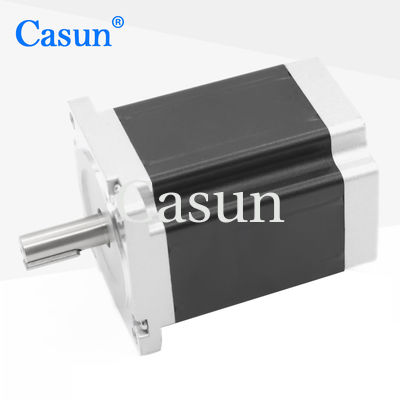

Motor Step 5.5A 12N.M 15kg NEMA 34 Stepper Motor For CNC Engraving Machine

Motor Step 5.5A 12N.M 15kg NEMA 34 Stepper Motor For CNC Engraving Machine

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	86SHD4505-37
MOQ:	1 পিসি
দাম:	$43-$48
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

12N.m

কারেন্ট:

5.5A

মোটর দৈর্ঘ্য:

149 মিমি

খাদ:

37 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

5.5A NEMA 34 Stepper Motor

NEMA 34 Stepper Motor For Engraving Machine

পণ্য বিবরণ

Nema34 Stepper Motor 86x86mm 112mm 5.5A 12N.m 5kg Motor High Precision Motor for CNC Engraving Machine

Motor Specifications

Step Angel	1.8 °
Fram Size	86mm
Number of Phase	2 Phase
Rated Current	5.5A
Holding Torque	12N.m
Resistance	1.1ohm
Inductance	8mH
Rotor Inertia	3600g-cm²
Motor weight	5 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
