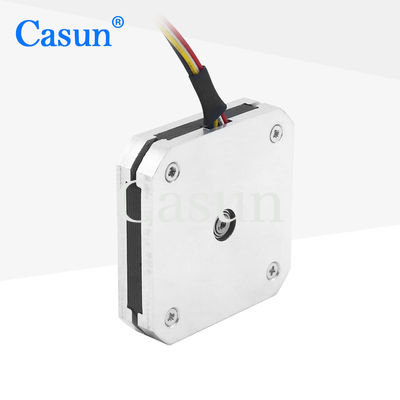

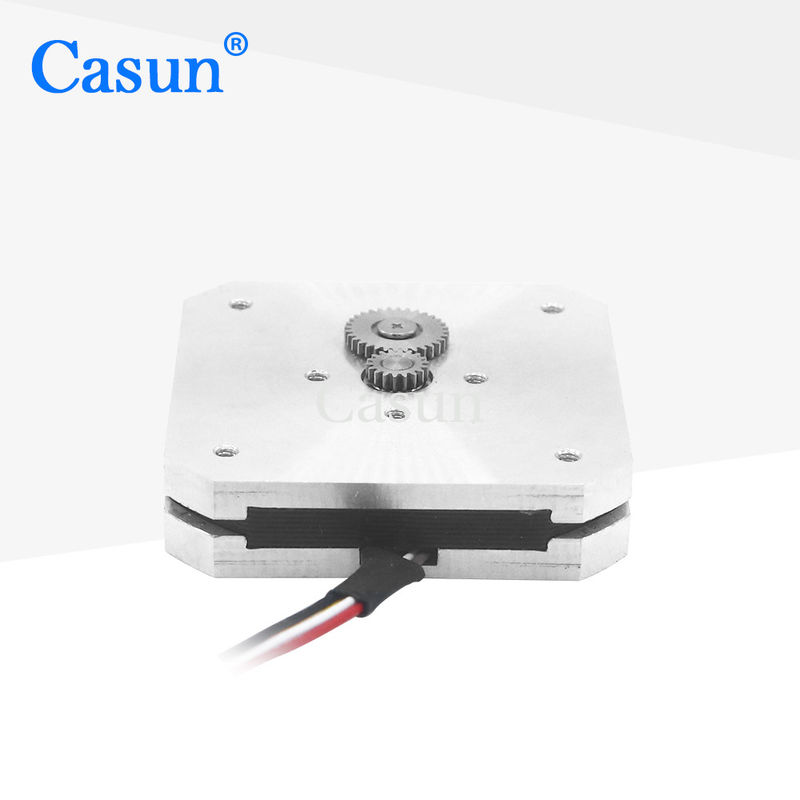

Casun Pancake Steppper Motor 57x57x13mm Flat With High Stepper Motor

Casun Pancake Steppper Motor 57x57x13mm Flat With High Stepper Motor

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	42SHY4102-2A1
MOQ:	1 পিসি
দাম:	$8-$10.84
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

প্রফুল্লতা:

nema57

টর্ক ধরে রাখা:

36mN.m

রেট করা বর্তমান:

0.5A

ভোল্টেজ:

5.2V ডিসি

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Pancake Steppper Motor 57x57x13mm

Flat Pancake Steppper Motor

পণ্য বিবরণ

Casun pancake steppper motor 57x57x13mm flat stepper motor with high stepper motor

NEMA17 Flat stepper motor 42mmx42mmx19.8mm pancake step motor for medical beauty equipment robotics

The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Casun Pancake Steppper Motor 57x57x13mm Flat With High Stepper Motor 2

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	0.5A
Holding Torque	36mN.m
Resistance	3.5 om
Inductance	1.8mH
Rotor Inertia	12 g-cm²
Motor weight	0.06kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Motor Length	Current	Holding Torque

P28SHD4611	9.5mm	0.5A	16mN.m

P28SHD4701	10.6mm	0.5A	20mN.m

P28SHD4750	13-15mm	0.5A	25mN.m

P28SHD4950	17.9mm	0.5A	35mN.m

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Pancake Steppper Motor 57x57x13mm Flat With High Stepper Motor 3

Please click the "Get a quote" button below to tell us your requirements.
