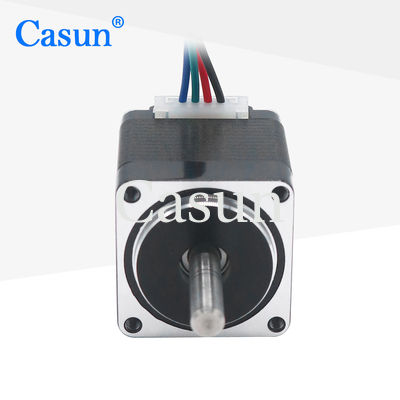

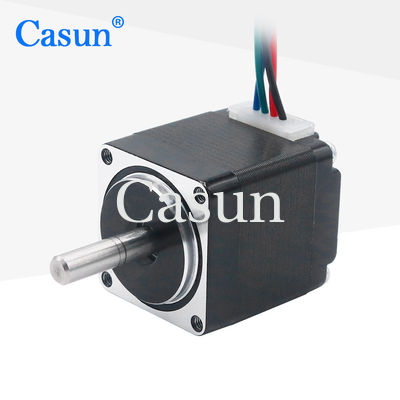

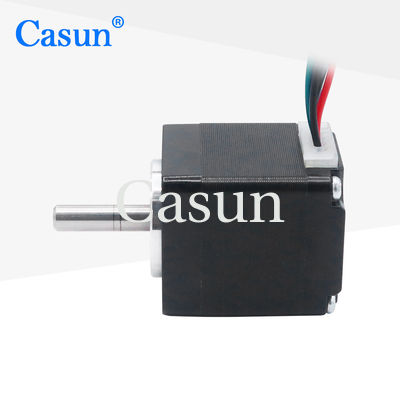

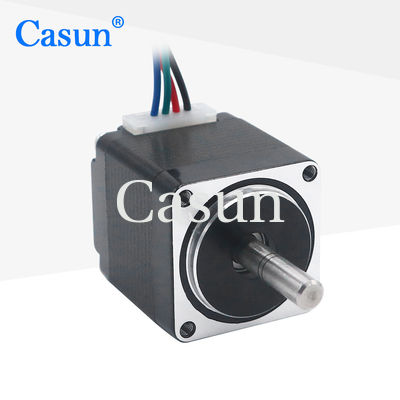

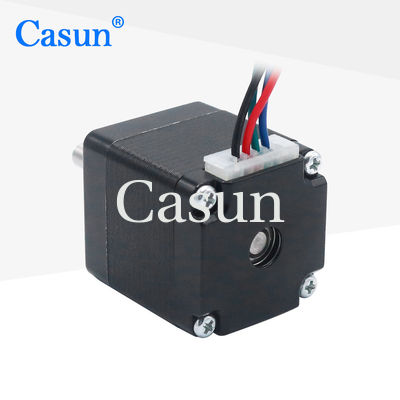

0.67A NEMA 11 Hybrid Stepper Motor 282832mm 80mN.M 0.67A CE ROHS

0.67A NEMA 11 Hybrid Stepper Motor 282832mm 80mN.M 0.67A CE ROHS

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	28SHD4207-20
MOQ:	1 পিসি
দাম:	$5.94-$8.6
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

80mN.m

কারেন্ট:

0.67A

মোটর দৈর্ঘ্য:

32 মিমি

খাদ:

বৃত্তাকার খাদ 20 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

NEMA 11 Hybrid Stepper Motor

Hybrid Stepper Motor 0.67A

পণ্য বিবরণ

The 28mm stepper motor is very controllable and can accurately control the speed and direction of rotation by controlling the frequency and sequence of current and pulse signals.

Medical and scientific equipment, as well as household appliances, image scanners, and car navigation.

Features:

Bipolar or unipolar versions available
Manufacturing with expertise in research and developmen
High torque and high precision
Wanted dealers! !
Our engineers will be in touch within 48 hours to provide the best solution

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 A
Holding Torque	80 mN.m
Resistance	5.8 ohm
Inductance	4.1 mH
Rotor Inertia	9 g-cm²
Motor weight	0.12 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Downoad

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.

0.67A NEMA 11 Hybrid Stepper Motor 28*28*32mm 80mN.M 0.67A CE ROHS 2
