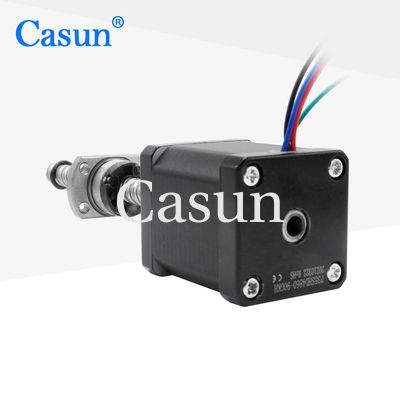

1.8° Angel NEMA 14 Stepper Motor With Lead Screw 0.36N.M Tr8*8

1.8° Angel NEMA 14 Stepper Motor With Lead Screw 0.36N.M Tr8*8

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	P35SHD4860-90GKH
MOQ:	1 পিসি
দাম:	$4.14-$6.98
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

360mN.m

হেলিকাল পিচ:

Tr8*8

মোটর দৈর্ঘ্য:

46 মিমি

খাদ:

বল স্ক্রু খাদ 90mm দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

1.8° Angel NEMA 14 Stepper Motor

Lead Screw NEMA 14 Stepper Motor

পণ্য বিবরণ

The rigidity of the ball screw transmission mechanism is relatively high, which can reduce the mechanical clearance during the transmission process.

Small automation systems, water pumps, electric door locks, image scanners

Features:

Bipolar or unipolar versions available
Dealers are actively sought!
Our engineers will be in touch within 48 hours to provide the best solution
High-tech industry and electronic industry equipment necessitate multiple international certifications
We are dedicated to professional research and development and manufacturing

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	360 mN.m
Resistance	2.7 ohm
Inductance	3.2 mH
Rotor Inertia	35 g-cm²
Motor weight	0.35 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
