57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed

57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	57SHD4816-20BQH
MOQ:	1 পিসি
দাম:	$3.14-$5
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

2.0Nm

কারেন্ট:

3.0A

মোটর দৈর্ঘ্য:

76 মিমি

খাদ:

মিলিং ফ্ল্যাট খাদ 20 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Nema 23 Closed Loop Stepper Motor

2.0Nm Closed Loop Stepper Motor

1.8 Degree Closed Loop Stepper Motor

পণ্য বিবরণ

The stepper motor itself is an open-loop control system, but when combined with an encoder, it can achieve closed-loop control.

Adjustments can be made based on actual feedback information to better adapt to load changes and environmental disturbances.

Features:

High torque and high precision
Our products offer high torque and precision
We have been operating in China for 12 years and have served over 800 customers
Our engineers will reach out to you within 48 hours to offer the optimal solution
Accept contract manufacturing

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	3.0 A
Holding Torque	2.0 N.m
Resistance	0.95 ohm
Inductance	3.6 mH
Rotor Inertia	460 g-cm²
Motor weight	1.1 kg
Number of leads	4
Connection	Bipolar

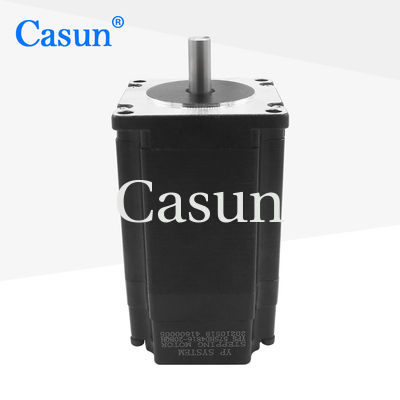

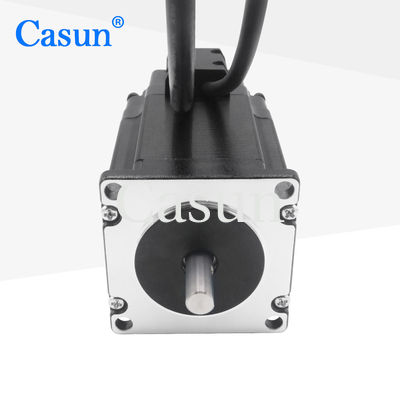

Appearance

57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed 0

Dimensions

57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
