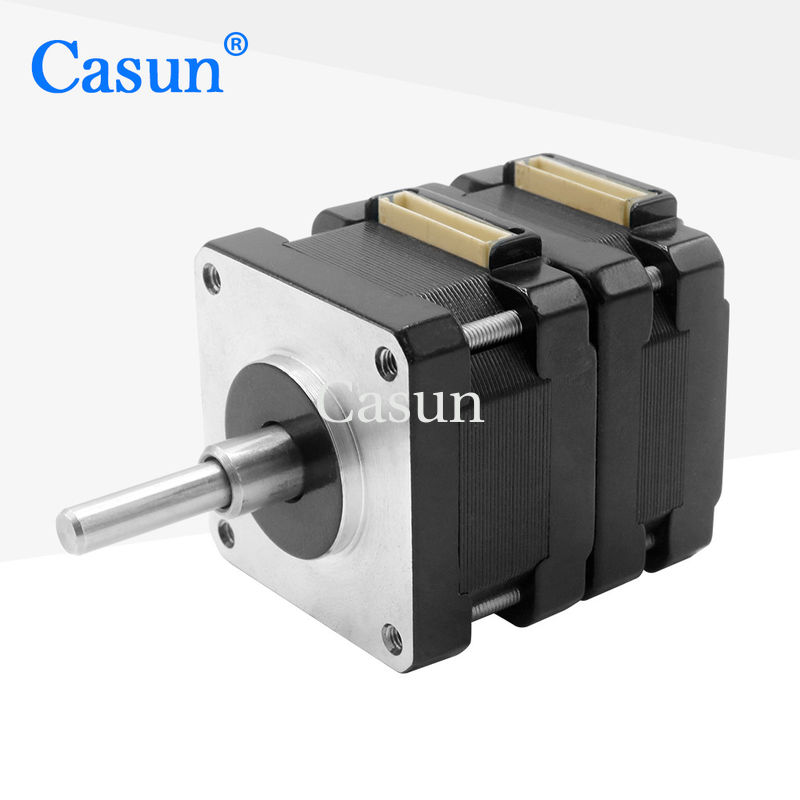

NEMA 14 Bipolar Stepper Motor Precision Structure 120mN.M

NEMA 14 Bipolar Stepper Motor Precision Structure 120mN.M

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	E39C-09
MOQ:	1 পিসি
দাম:	$18-$23
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

120mN.m

কারেন্ট:

0.4a

মোটর দৈর্ঘ্য:

43.6 মিমি

খাদ:

বৃত্তাকার খাদ 24 মিমি দৈর্ঘ্য

ভোল্টেজ:

12V

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

NEMA 14 Bipolar Stepper Motor

120mN.M Bipolar Stepper Motor

Precision Structure Bipolar Stepper Motor

পণ্য বিবরণ

nema14 hybrid stepper motor 39x39x43.6mm 120mN.m Multisport motor

The Nema14 stepper motor you described has the following specifications:

Step angle: 1.8 degrees per step
Motor size: 39 x 39mm
Rated current: 0.4A
Holding torque: 120mN.m
Weight: 0.3kg

Movement method:
1. The output shaft A can rotate (controlled by port 2);
2. The output shaft B can rotate (controlled by port 1).
Note: The above two motion modes are controlled by different ports.
Each motion mode can run independently at the same time without interfering with each other.

Motor Specifications

Step Angel	1.8 °
Fram Size	39mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	120mN.m
Resistance	30ohm
Inductance	45mH
Rotor Inertia	20 g-cm²
Motor weight	0.3kg
Number of leads	4
Connection	Bipolar

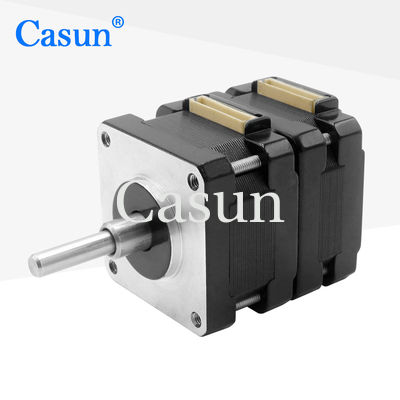

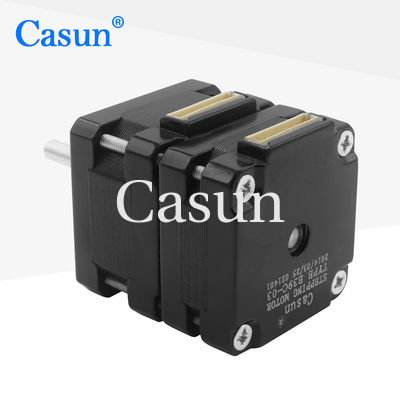

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
