Nema 6 Micro Stepper Motor 5.8mN.M Step Motor For Video Conferencing Machine

Nema 6 Micro Stepper Motor 5.8mN.M Step Motor For Video Conferencing Machine

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	14SHD4001-15B
MOQ:	1 পিসি
দাম:	$20-$25
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

5.8mN.m

কারেন্ট:

0.3 এ

মোটর দৈর্ঘ্য:

30 মিমি

খাদ:

বৃত্তাকার খাদ 15 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Nema 6 Micro Stepper Motor

5.8mN.M Micro Stepper Motor

পণ্য বিবরণ

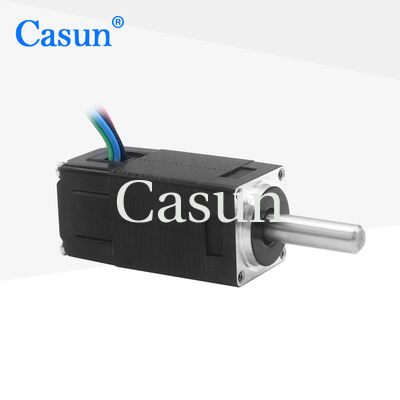

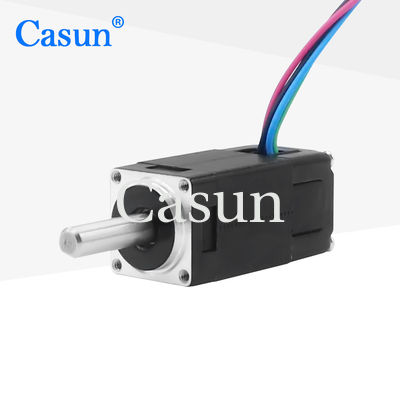

Nema6 14x14x30mm 0.3A Casun Stepper Motor Nema 6 Mini Stepper Motor For video conferencing machine.

Motor Specifications

NEMA 6 form factor: NEMA 6 refers to the motor's frame size. It indicates the physical dimensions and mounting specifications of the motor. In this case, the motor has a 14x14x30mm size, which describes its width, height, and length.

Current rating: The motor has a current rating of 0.3A (Amperes). The current rating indicates the amount of electrical current required to operate the motor effectively.

Application: The motor is intended for use in a video conferencing machine. Stepper motors are commonly used in various applications that require precise control of motion, such as robotics, automation, 3D printers, and motion control systems.

Step Angel	1.8 °
Fram Size	14 mm
Number of Phase	2 Phase
Rated Current	0.3 A
Holding Torque	5.8 mN.m
Resistance	3.8 ohm
Inductance	21mH
Rotor Inertia	2g-cm²
Motor weight	0.08 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
