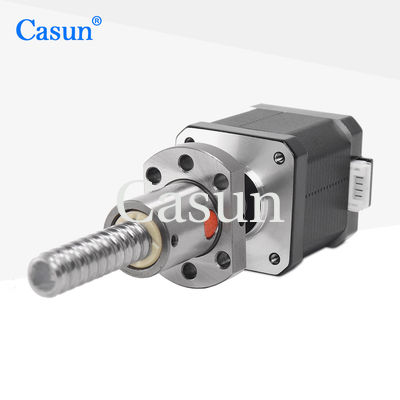

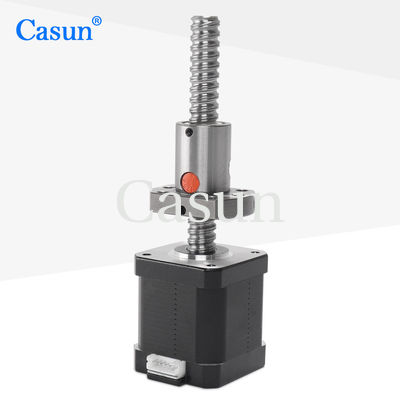

NEMA 17 Ball Screw Stepper Motor 320mN.M Linear Stepping Motor For Automation

NEMA 17 Ball Screw Stepper Motor 320mN.M Linear Stepping Motor For Automation

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	42SHD00101-45GTH
MOQ:	1 পিসি
দাম:	$29.98-$34.98
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

রঙ:

কালো

কারেন্ট:

1.68Amp

ওজন:

0.25 কেজি

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 38x29xc14 মি

বিশেষভাবে তুলে ধরা:

NEMA 17 Ball Screw Stepper Motor

Ball Screw Stepper Motor 320mN.M

পণ্য বিবরণ

NEMA17 Ball Screw Stepper Motor 320mN.M Linear Stepping Motor For Automation

The ball screw mechanism consists of a threaded screw shaft and a nut with ball bearings that roll between the screw and the nut. As the screw rotates, the nut moves along the screw, resulting in linear motion.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	1.68Amp
Holding Torque	320mN.m
Resistance	1.50ohm
Inductance	2.5mH
Rotor Inertia	38g-cm²
Motor weight	0.2kg
Lead Screw	45mm
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm 34 mm 40 mm 48 mm 60 mm	5	2	20-1000 mm
		8
	6.35	1.27
		3.175
		6.35
	6.5	3
		6.35
	8	1
		2
		4
		8
		12

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA 17 Ball Screw Stepper Motor 320mN.M Linear Stepping Motor For Automation 1

Please click the "Get a quote" button below to tell us your requirements.
