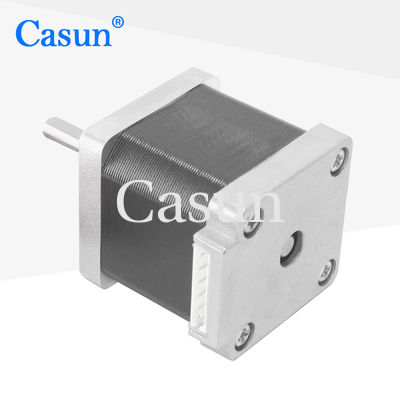

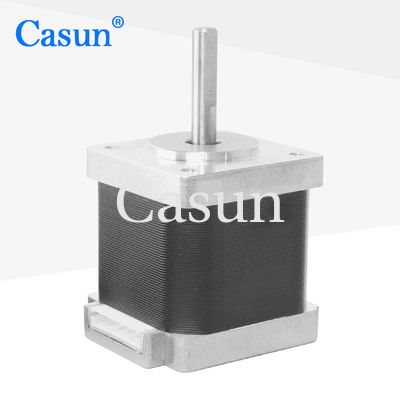

1.0A Micro Stepping Motor 1.8 Degree Hybrid NEMA 14 35mm Body

1.0A Micro Stepping Motor 1.8 Degree Hybrid NEMA 14 35mm Body

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	35SHD0806-20BV2
MOQ:	1 পিসি
দাম:	$4.14-$6.98
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

140mN.m

কারেন্ট:

1.0A

মোটর দৈর্ঘ্য:

40 মিমি

খাদ:

মিলিং ফ্ল্যাট খাদ 20 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

1.0A Micro Stepping Motor

1.8 Degree Micro Stepping Motor

পণ্য বিবরণ

High Quality 1.8 Degree Hybrid NEMA 14 35mm Body Micro Stepping Motor Arduino

Due to their low vibration and noise levels, they are often used in medical equipment.

The motion of the NEMA14 stepper motor is predictable and repeatable.

Features:

Bipolar or unipolar versions available
Our engineers will respond within 48 hours to provide the best solution
Available in single or double shaft versions
To give the best solution, our engineers will contact you within 48 hours
Contract manufacturing accepted

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	140 mN.m
Resistance	2.5 ohm
Inductance	1.9 mH
Rotor Inertia	18 g-cm²
Motor weight	0.21 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
