575750mm 0.9N.M NEMA 23 Stepper Motor For CNC Robots Textile Machinery

575750mm 0.9N.M NEMA 23 Stepper Motor For CNC Robots Textile Machinery

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	57SHD0203-21BH
MOQ:	1 পিসি
দাম:	$3.14-$5
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

900mN.m

কারেন্ট:

0.7 এ

মোটর দৈর্ঘ্য:

50 মিমি

খাদ:

মিলিং ফ্ল্যাট খাদ 21 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Textile Machinery NEMA 23 Stepper Motor

0.9N.M NEMA 23 Stepper Motor

পণ্য বিবরণ

57*57*50mm Stepper Motor 0.9N.M NEMA 23 For CNC Robots Textile Machinery

The NEMA 23 stepper motors are suitable for applications that require driving large loads or generating large torques.

3D printers, CNC machine tools, automated production lines, and industrial robots.

Features:

Our engineers will contact you within two days to offer the most effective solution
For high-tech industry and electronic industry equipment
Contract manufacturing accepted
Having operated in China for 12 years, we have catered to over 800 customers
High torque and high precision

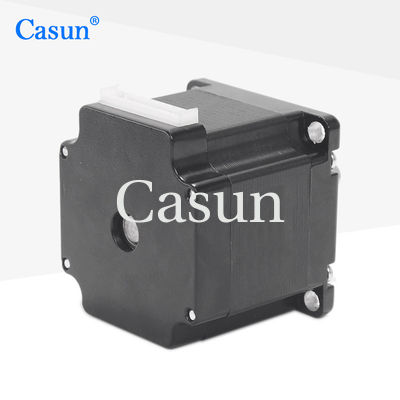

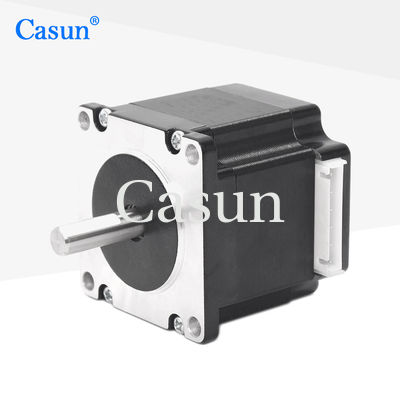

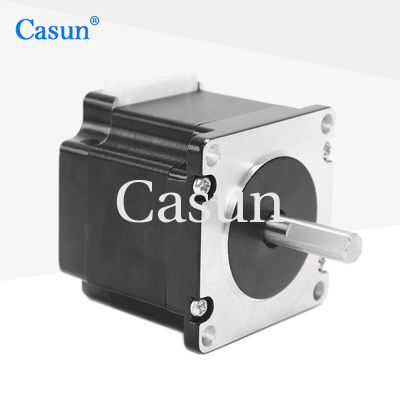

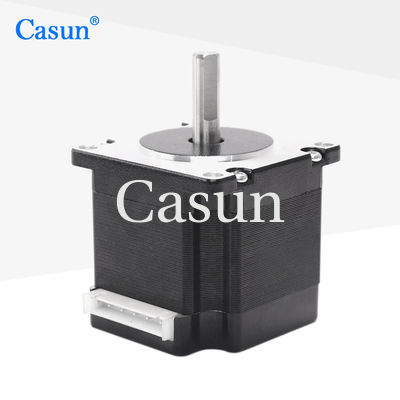

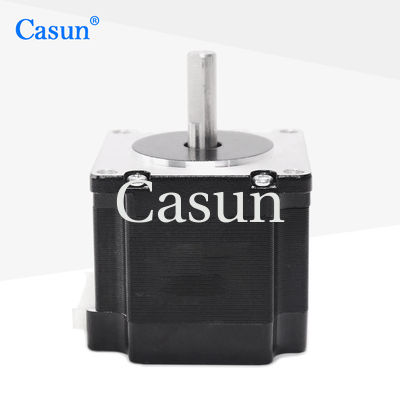

Appearance

57*57*50mm 0.9N.M NEMA 23 Stepper Motor For CNC Robots Textile Machinery 0

Dimensions

57*57*50mm 0.9N.M NEMA 23 Stepper Motor For CNC Robots Textile Machinery 1

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	0.7 A
Holding Torque	900 mN.m
Resistance	12 ohm
Inductance	40 mH
Rotor Inertia	220 g-cm²
Motor weight	0.55 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
