Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment

Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	86SHD4317-37QH
MOQ:	1 পিসি
দাম:	$3.14-$5
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

8.5Nm

কারেন্ট:

6.0A

মোটর দৈর্ঘ্য:

112 মিমি

খাদ:

কীওয়ে খাদ 20 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Nema 34 Closed Loop Stepper Motor

8.5Nm Closed Loop Stepper Motor

পণ্য বিবরণ

Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment

The closed-loop control system can counteract external interference and errors by detecting motion status and position information.

Compatible with existing open-loop stepper motor control systems.

Features:

High torque and high precision
Our products offer high torque and precision
Expertise in professional research and development manufacturing
Our engineers will reach out to you within 48 hours to offer the optimal solution
A ten-year warranty for confident purchases

Motor Specifications

Step Angel	1.8 °
Fram Size	86 mm
Number of Phase	2 Phase
Rated Current	6.0 A
Holding Torque	8.5 N.m
Resistance	0.54 ohm
Inductance	5.0 mH
Rotor Inertia	2700 g-cm²
Motor weight	3.8 kg
Number of leads	4
Connection	Bipolar

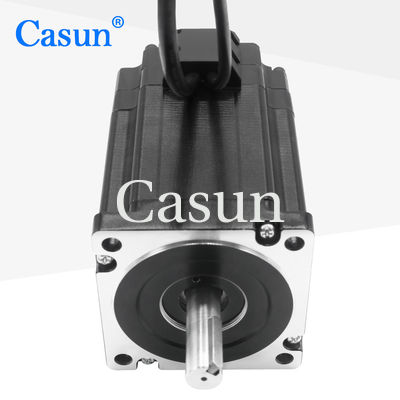

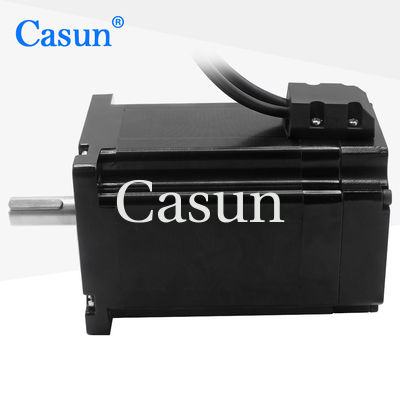

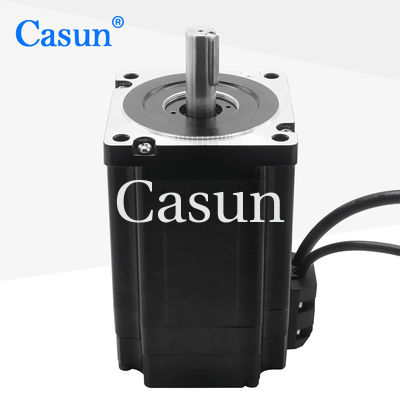

Appearance

Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment 0

Dimensions

Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
