2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 353534mm 0.15N.M For Stage Lighting

2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 353534mm 0.15N.M For Stage Lighting

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	35SHD4103-10B
MOQ:	1 পিসি
দাম:	$4.14-$6.98
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

155mN.m

কারেন্ট:

1.0A

মোটর দৈর্ঘ্য:

34 মিমি

খাদ:

মিলিং ফ্ল্যাট খাদ 10 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

1.8 Deg Nema 14 Stepping Motor

Nema 14 Stepping Motor Stage Lighting

পণ্য বিবরণ

2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting

The 35mm stepper motor can quickly start and stop after receiving control signals, and has good response speed.

Provide different configuration options, such as different step angles, lengths, and torque levels.

Features:

Established in China for 12 years, we have served more than 800 customers.
Hybrid stepper construction
Available in single or double shaft versions
High torque and high precision are our specialties
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	155 mN.m
Resistance	3.8 ohm
Inductance	5.8 mH
Rotor Inertia	14 g-cm²
Motor weight	0.18 kg
Number of leads	4
Connection	Bipolar

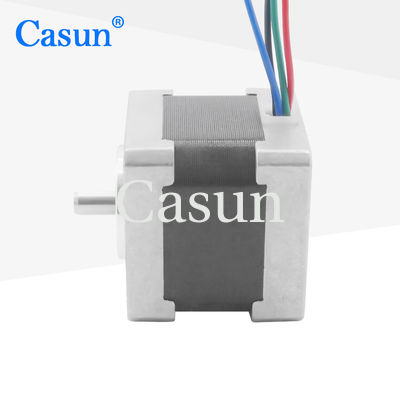

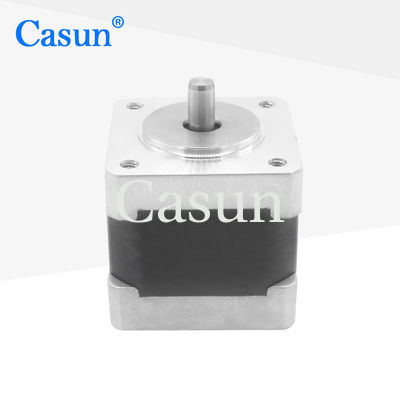

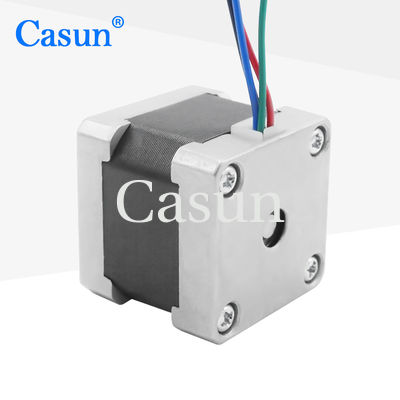

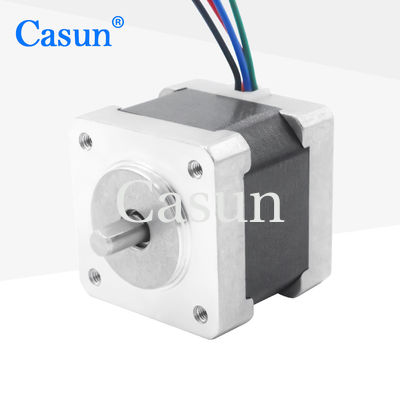

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters,

installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
