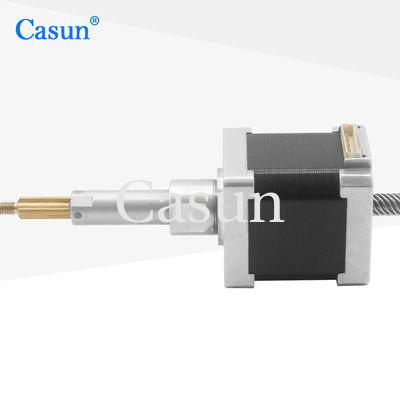

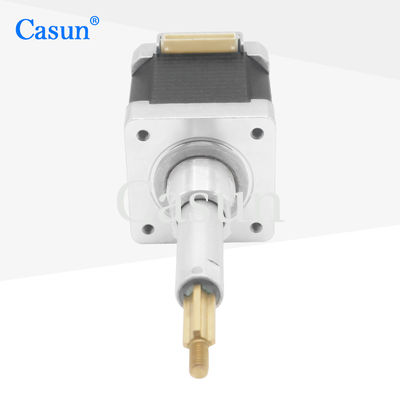

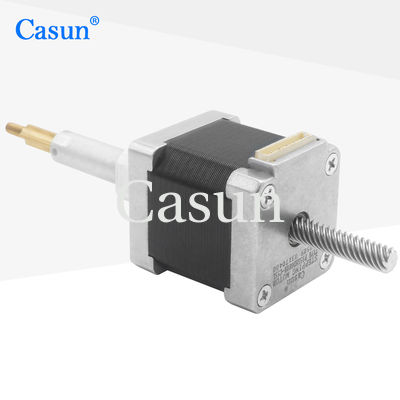

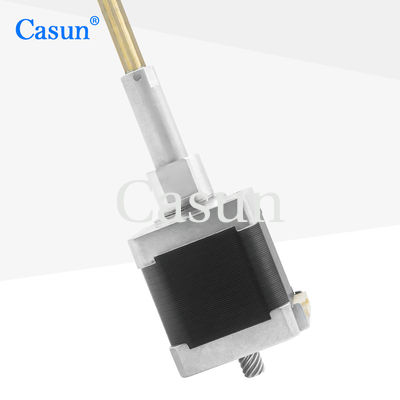

NEMA 14 Captive Step Motor 41mm Body 1.0A For Precision Positioning

NEMA 14 Captive Step Motor 41mm Body 1.0A For Precision Positioning

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	P35SHD0807-C55L
MOQ:	1 পিসি
দাম:	$26-$31
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

ন্যূনতম থ্রাশ:

0.2 কেজি 600 পিপিএসে

কারেন্ট:

1.0A

মোটর দৈর্ঘ্য:

41 মিমি

স্ট্রোক:

55 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 38x29xc14 মি

বিশেষভাবে তুলে ধরা:

Precision positioning Captive Step Motor

41mm Captive Step Motor

1.0A Captive Step Motor

পণ্য বিবরণ

The NEMA 14 linear stepper motor no additional transmission mechanism is required, reducing energy loss and system complexity.

Precision positioning, laboratory equipment, medical equipment.

Features:

Bipolar or unipolar versions available
Dealers wanted!
Specializing in tailor-made services is our expertise
Contract-based manufacturing services are welcome
Every stepper motor model is adaptable to various applications

Appearance

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.42 A
minimal thrust	1kg at 300pps
Resistance	4.5 ohm
Inductance	5.8 mH
Rotor Inertia	12 g.cm²
Motor weight	0.35 kg
Number of leads	4
Connection	Bipolar

Torque Curves

NEMA 14 Captive Step Motor 41mm Body 1.0A For Precision Positioning 2

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
