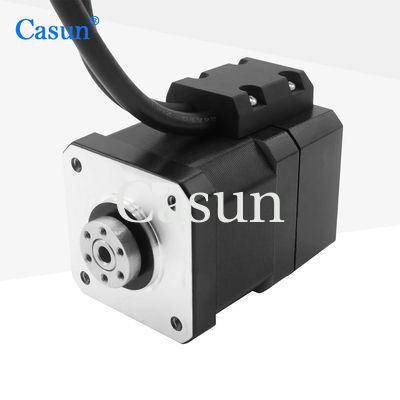

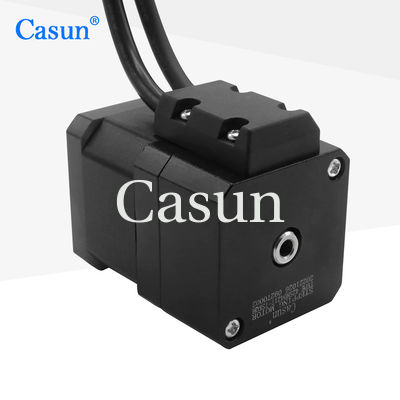

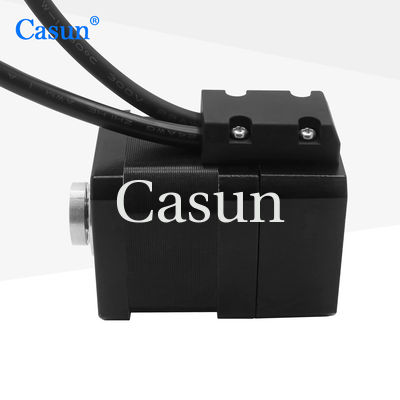

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	42SHD4217-7SKQH
MOQ:	1 পিসি
দাম:	$23.3-$26.3
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

শরীর:

40 মিমি

ধাপ কোণ (ডিগ্রী):

1.8 ডিগ্রী

পালস কাউন্ট:

1000

কারেন্ট:

1.5a

ওজন:

0.4 কেজি

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Gearbox Stepper Motor

2.0A Stepper Motor

Encoder Stepper Motor

পণ্য বিবরণ

Motors with encoders can achieve more complex motion control, such as precise adjustment of speed and position.

The combination of stepper motor and reducer provides high-precision motion control.

Features:

Bipolar or unipolar versions available
We offer tailored services and invite contract manufacturing
A decade-long warranty for assured purchasing
Our engineering team will reach out within 48 hours to deliver the optimal solution
Specialized in R&D and manufacturing

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	450 mN.m
Resistance	2.2 ohm
Inductance	5.0 mH
Rotor Inertia	57 g-cm²
Motor weight	0.4kg
Pulse count	1000
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment 1

Please click the "Get a quote" button below to tell us your requirements.
