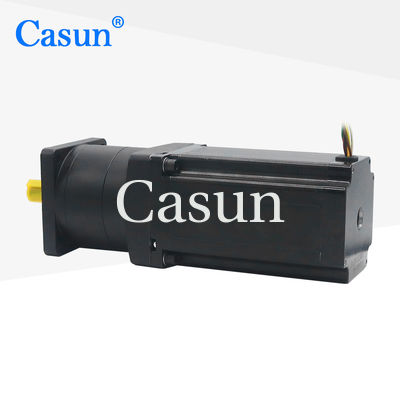

149mm Nema 34 Geared Stepper Motor with Large Reduction Ratio 10 1 Planetary Gearbox

149mm Nema 34 Geared Stepper Motor with Large Reduction Ratio 10 1 Planetary Gearbox

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	86SHD8503-10GH
MOQ:	1 পিসি
দাম:	$68.15-$71.15
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

মূল শব্দ:

গিয়ারড স্টেপার মোটর

ভোল্টেজ:

5.04V ডিসি

ওজন:

5.0 কেজি

ধাপ কোণ (ডিগ্রী):

1.8 ডিগ্রী

অনুপাত:

10.562:1

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

149mm Nema 34 Geared Stepper Motor

Large Reduction Geared Stepper Motor

পণ্য বিবরণ

Motors with reducers can achieve more complex motion control, such as precise adjustment of speed and position.

Combining the high precision of stepper motors and the torque enhancement function of reducers, it provides higher performance and flexibility.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
Dealers wanted!
We offer customized services and accept contract manufacturing

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	86mm
Number of Phase	2 Phase
Rated Current	2.8Amp
Holding Torque	10.6N.m
Resistance	1.68ohm
Inductance	18.8mH
Rotor Inertia	3600g-cm²
Motor weight	5.0kg
Gear Reduction Ratio	10.562:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

149mm Nema 34 Geared Stepper Motor with Large Reduction Ratio 10 1 Planetary Gearbox 1

Please click the "Get a quote" button below to tell us your requirements.
