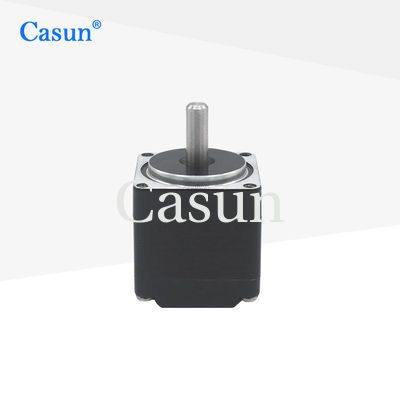

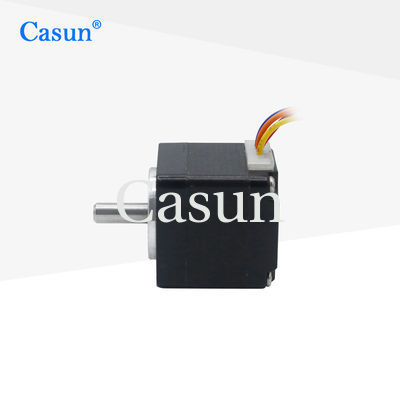

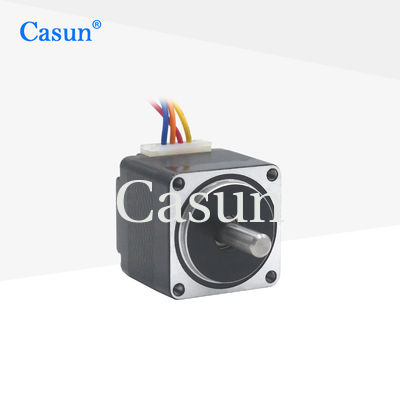

NEMA 11 Mini Stepper Motor 0.67A 95mN.m 44.5mm Body For Medical Equipment

NEMA 11 Mini Stepper Motor 0.67A 95mN.m 44.5mm Body For Medical Equipment

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	28SHD4401-20B1
MOQ:	1 পিসি
দাম:	$5.94-$8.6
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

95mN.m

কারেন্ট:

0.67A

মোটর দৈর্ঘ্য:

44 মিমি

সার্টিফিকেশন:

সিই আইএসও RoHS

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

44.5mm NEMA 11 Mini Stepper Motor

95mN.m NEMA 11 Mini Stepper Motor

0.67A NEMA 11 Mini Stepper Motor

পণ্য বিবরণ

NEMA 11 stepper motors provide relatively high torque while maintaining a small volume

Suitable for various industries and applications, including medical equipment, laboratory instruments, small robots, precision positioning systems, etc.

Features:

Each model of stepper motor can be suitable for different scenarios
Needed dealers! !
Available in single or double shaft versions
Specialized in R&D and manufacturing
Our engineering team will reach out within 48 hours to deliver the optimal solution

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 A
Holding Torque	95 mN.m
Resistance	6.8 ohm
Inductance	5 mH
Rotor Inertia	9 g-cm²
Motor weight	0.12 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
