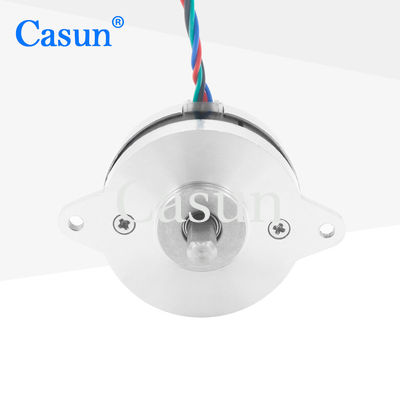

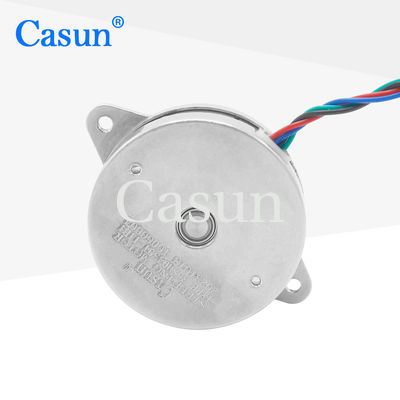

1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	36SHD4301-11B1
MOQ:	1 পিসি
দাম:	$4.14-$6.98
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

70mN.m

কারেন্ট:

0.3 এ

মোটর দৈর্ঘ্য:

15.3 মিমি

খাদ:

মিলিং ফ্ল্যাট খাদ 11 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

0.3A NEMA 14 Flat Stepper Motor

70mN.M NEMA 14 Flat Stepper Motor

SMT Machine Stepper Motor

পণ্য বিবরণ

Controlled by the number of pulses, there is no need for additional position sensors to provide feedback on the motor's position.

Applied to various automation equipment, robots, 3D printers, CNC machine tools, medical equipment, and many other fields.

Features:

Welcoming contract manufacturing
Offer specialised services
Available in single or double shaft versions
Dealers wanted!!
We provide custom services and undertake contract manufacturing

Motor Specifications

Step Angel	1.8 °
Fram Size	36 mm
Number of Phase	2 Phase
Rated Current	0.3 A
Holding Torque	70 mN.m
Resistance	15.5 ohm
Inductance	7.0 mH
Rotor Inertia	4 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
