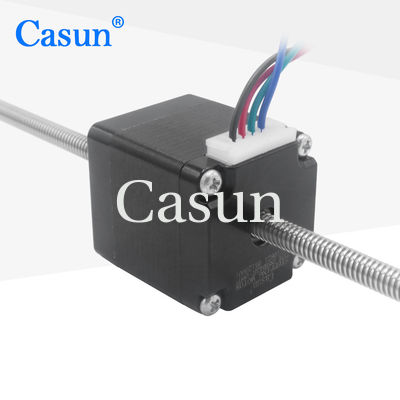

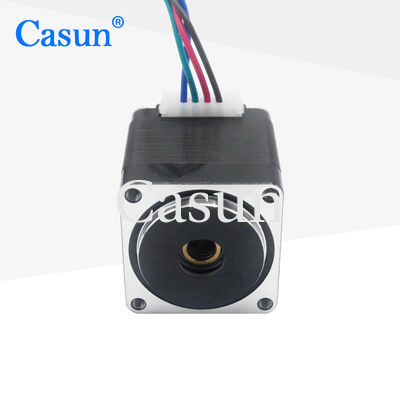

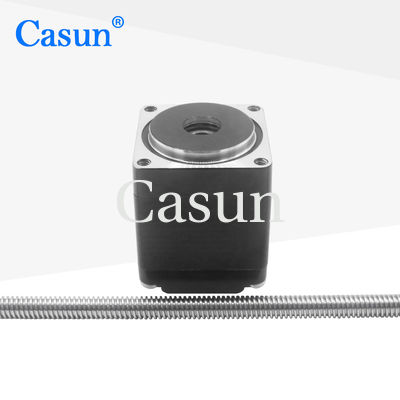

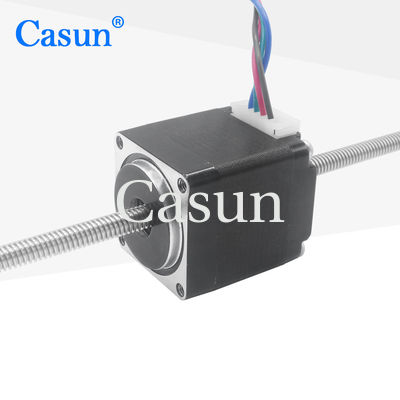

Non Captive Nema 11 Stepper Motor 1.8 Degrees 282833mm 0.8A for Precision Instrument

Non Captive Nema 11 Stepper Motor 1.8 Degrees 282833mm 0.8A for Precision Instrument

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	28SHD4207-188TT
MOQ:	1 পিসি
দাম:	$9.94-$15
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

রঙ:

কালো

কারেন্ট:

0.8Amp

টর্ক ধরে রাখা:

80mN.m

সীসা স্ক্রু:

Tr5×2

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 38x29xc14 মি

বিশেষভাবে তুলে ধরা:

Precision Instrument Nema 11 Stepper Motor

Non Captive Nema 11 Stepper Motor

1.8 Degrees Nema 11 Stepper Motor

পণ্য বিবরণ

No feedback system is required, which simplifies the design and control system, reduces costs and complexity.

Capable of providing reliable linear motion in various applications.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
We provide customized services and engage in contract manufacturing
CE and RoHS approved
Distributors are sought after!

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	28mm
Number of Phase	2 Phase
Rated Current	0.8Amp
Holding Torque	80mN.m
Resistance	5.8ohm
Inductance	4.1mH
Rotor Inertia	9g-cm²
Motor weight	0.12kg
Lead Screw	Tr5X2
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm 34 mm 40 mm 48 mm 60 mm	5	2	20-1000 mm
		8
	6.35	1.27
		3.175
		6.35
	6.5	3
		6.35
	8	1
		2
		4
		8
		12

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Non Captive Nema 11 Stepper Motor 1.8 Degrees 28*28*33mm 0.8A for Precision Instrument 1

Please click the "Get a quote" button below to tell us your requirements.
