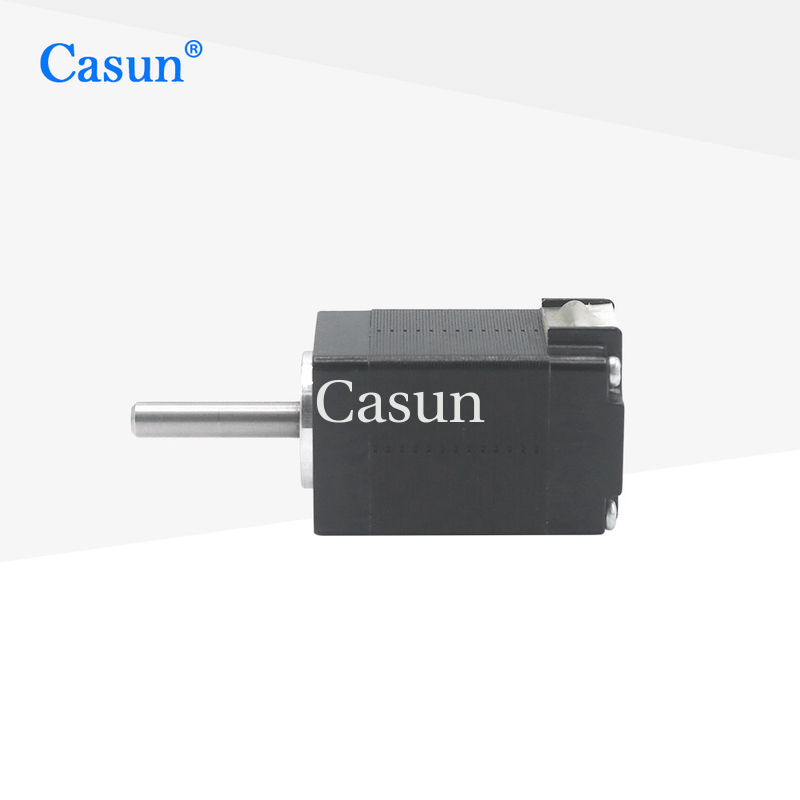

Mini Motor NEMA 11 20×20×30mm 0.6A with Office Equipment

Mini Motor NEMA 11 20×20×30mm 0.6A with Office Equipment

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	20SHD0003-20
MOQ:	1 পিসি
দাম:	$5.94-$8.6
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

20mN.m

কারেন্ট:

0.6A

মোটর দৈর্ঘ্য:

30 মিমি

খাদ:

বৃত্তাকার খাদ 20 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Office Equipment NEMA 11

20×20×30mm NEMA 11

Mini Motor NEMA 11

পণ্য বিবরণ

The resolution can be further improved through subdivision driving technology, which is suitable for applications that require high-precision positioning.

The control signal of stepper motor is simple and easy to program and control through microcontroller or PLC.

Features:

High accuracy and torque
Offer custom services
Available in single or double shaft versions
Our products deliver high torque and precision
With 12 years of experience in China, we have served over 800 satisfied customers

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	20 mN.m
Resistance	6.5 ohm
Inductance	2.0 mH
Rotor Inertia	2 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

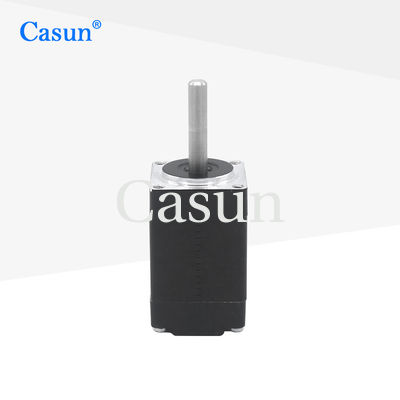

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
