1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance

1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	42SHD0079-24SH
MOQ:	1 পিসি
দাম:	$3.14-$5
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

320mN.m

কারেন্ট:

1.33A

মোটর দৈর্ঘ্য:

34 মিমি

খাদ:

ডুয়াল খাদ 20 মিমি দৈর্ঘ্য

রেটেড ভোল্টেজ:

3.6V

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Medical Equipment NEMA 17 Stepper Motor

Dual Shaft NEMA 17 Stepper Motor

1.8 Degree NEMA 17 Stepper Motor

পণ্য বিবরণ

Dual axis stepper motors can adapt to various applications, from simple linear motion to complex multi axis motion control.

The dual axis design can better achieve dual axis synchronous control and improve the positioning accuracy of the system.

Features:

Our engineers will contact you within two days to offer the most effective solution
Customized service offerings
Available in single or double shaft versions
Contract manufacturing is a service we offer
We specialize in providing professional drivetrain solutions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.33 A
Holding Torque	320 mN.m
Resistance	2.7 ohm
Inductance	4.2 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

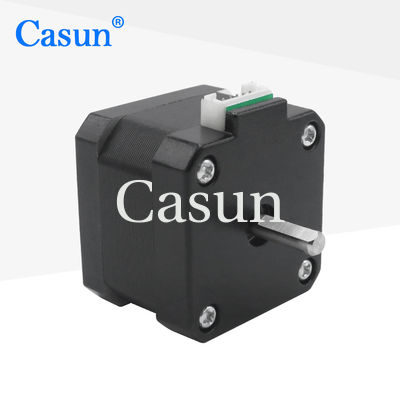

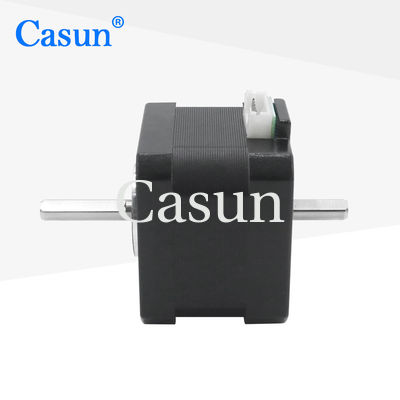

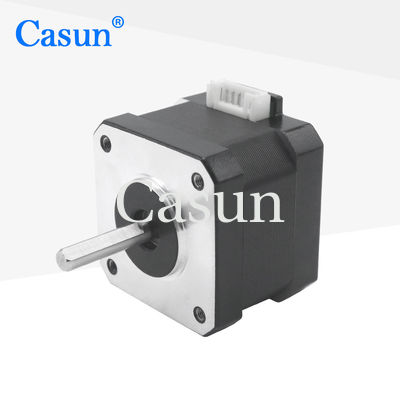

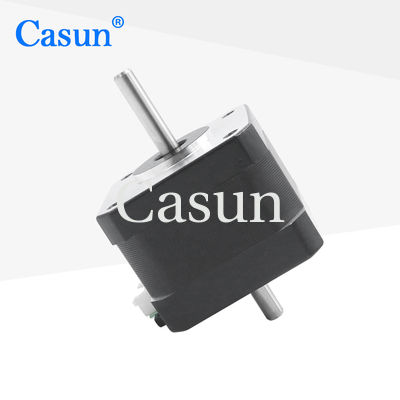

Appearance

1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance 0

Dimensions

1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
