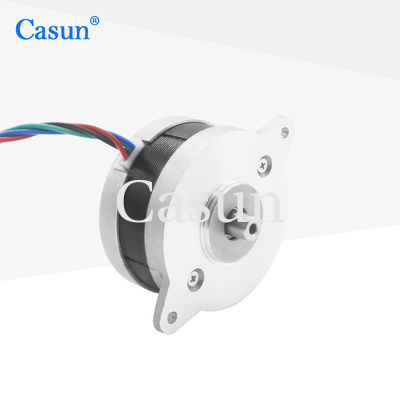

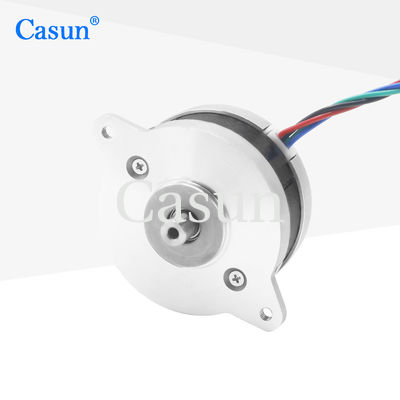

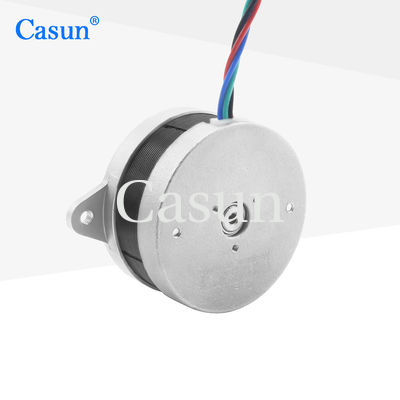

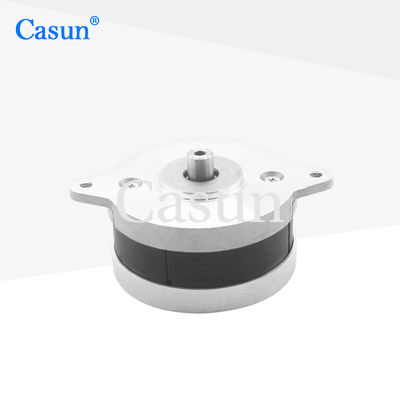

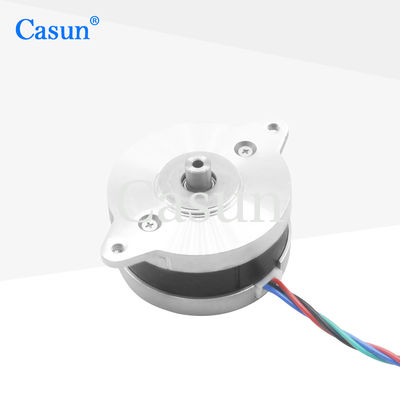

1.8 Degree 2 Phase 1.0A 100mN.m NEMA 14 Hybrid Stepper Motor With CE ISO

1.8 Degree 2 Phase 1.0A 100mN.m NEMA 14 Hybrid Stepper Motor With CE ISO

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	36SHD4401-6K
MOQ:	1 পিসি
দাম:	$4.14-$6.98
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

100mN.m

কারেন্ট:

1.0A

মোটর দৈর্ঘ্য:

18.6 মিমি

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

100mN.m NEMA 14 Hybrid Stepper Motor

1.0A NEMA 14 Hybrid Stepper Motor

1.8 Degree NEMA 14 Stepper Motor

পণ্য বিবরণ

Capable of stable operation in different working environments, including high temperature, low temperature, and humidity, with strong adaptability.

Made with high-quality materials and processes, it has strong durability and anti-interference ability.

Features:

We welcome contract manufacturing projects
Offer specialised services
Available in single or double shaft versions
Our stepper motors are versatile and adaptable to various applications
We provide custom services and undertake contract manufacturing

Motor Specifications

Step Angel	1.8 °
Fram Size	36 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	100 mN.m
Resistance	2.15 ohm
Inductance	8.0 mH
Rotor Inertia	13.7 g-cm²
Motor weight	0.07 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
