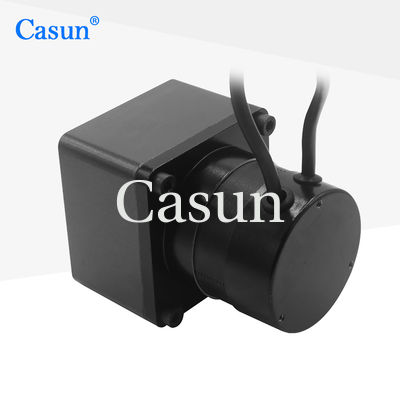

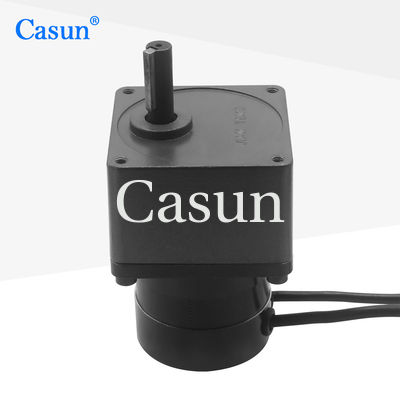

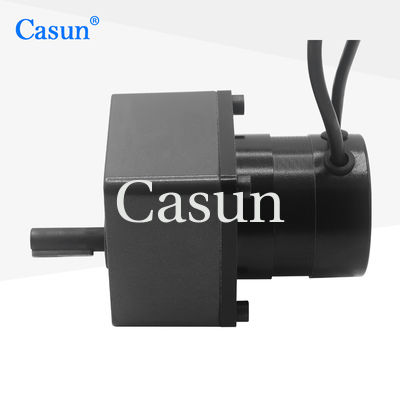

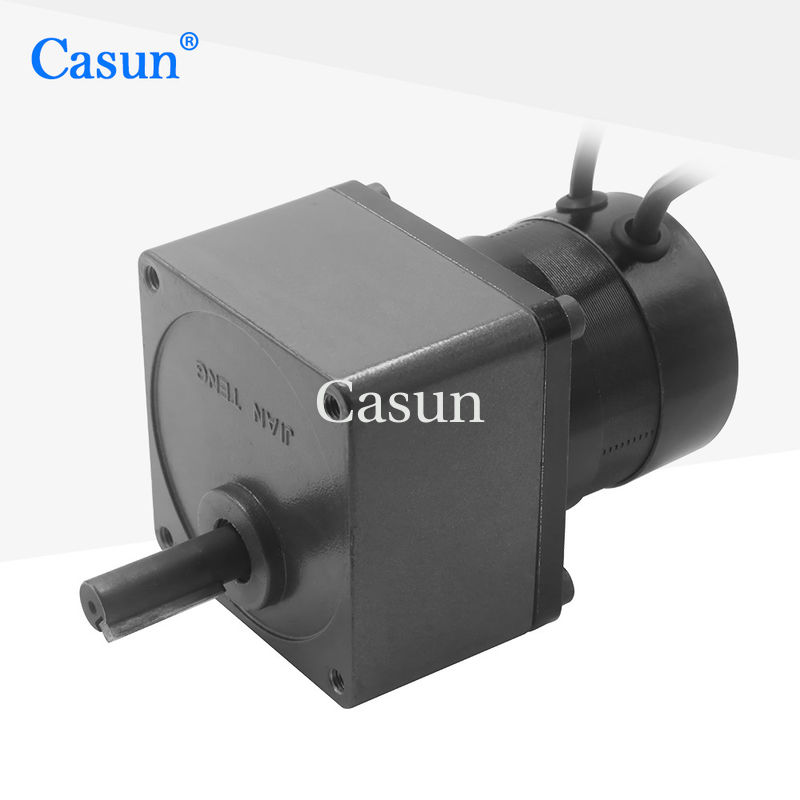

8 Phases DC Brushless Motor NEMA 23 30W Eccentric Deceleration Motor

8 Phases DC Brushless Motor NEMA 23 30W Eccentric Deceleration Motor

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	57BL56R30-2418-30K
MOQ:	1 পিসি
দাম:	$18-$28
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROSH,ISO

গতি (আরপিএম):

1900rpm

টর্ক:

0.8Nm

ভোল্টেজ(V):

24V

গিয়ার হ্রাস অনুপাত:

30:1

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

Eccentric deceleration DC Brushless Motor

30W DC Brushless Motor

NEMA 23 DC Brushless Motor

পণ্য বিবরণ

Brushless DC motors do not have carbon brushes, so there is no problem of carbon brush wear and longer lifespan.

Due to its high efficiency, brushless motors can save energy during long-term operation.

Features:

Experts in drivetrain solutions
Tailored solutions are our forte
We are experts in drivetrain solutions
Our engineering team guarantees contact within 48 hours to present the optimal solution
Expect a response from our engineers within 48 hours with the best solution for your needs

Motor Specifications

Fram Size	57 mm
Rated Current	2 A
Rated Torque	0.16N.m
Rated speed	1800rpm
Noload speed	1900rpm
Rate Power	30 W
Rate Voltage	24 V
Number of poles	8
Insulation Class	Class B

Appearance

8 Phases DC Brushless Motor NEMA 23 30W Eccentric Deceleration Motor 0

Dimensions

8 Phases DC Brushless Motor NEMA 23 30W Eccentric Deceleration Motor 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
