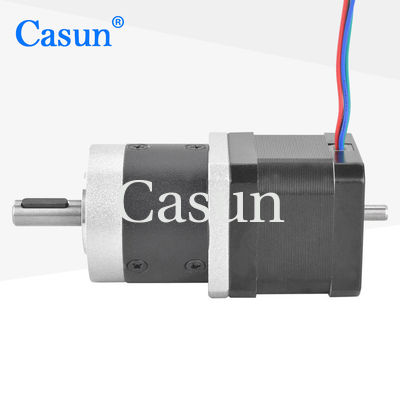

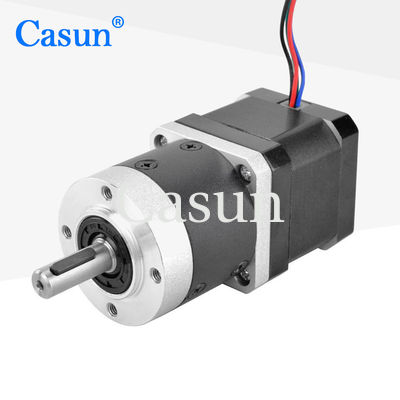

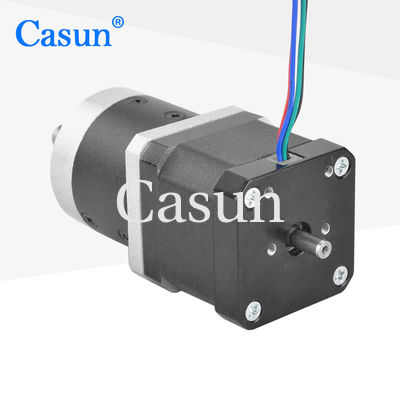

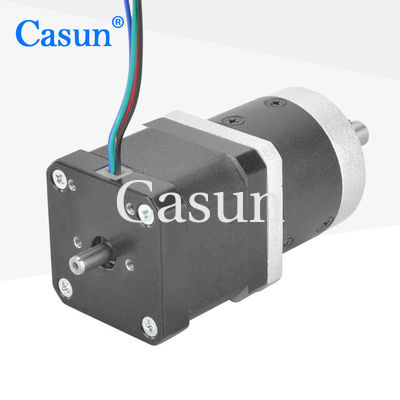

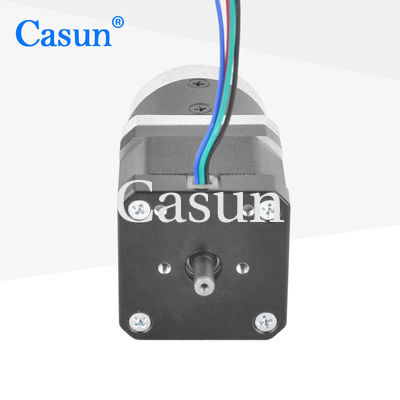

NEMA 17 Ratio 10/1 Planetary Gear Stepping Motor 40mm Body For Intelligent Vehicle

NEMA 17 Ratio 10/1 Planetary Gear Stepping Motor 40mm Body For Intelligent Vehicle

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	17HS15-1684D-HG10
MOQ:	1 পিসি
দাম:	$20-$23
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

মূল শব্দ:

গিয়ারড স্টেপার মোটর

ভোল্টেজ:

2.8V ডিসি

ওজন:

0.9 কেজি

ধাপ কোণ (ডিগ্রী):

1.8 ডিগ্রী

অনুপাত:

10:1

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

40mm body Planetary Gear Stepping Motor

Intelligent Vehicle Planetary Gear Stepping Motor

NEMA 17 Planetary Gear Stepping Motor

পণ্য বিবরণ

Deceleration stepper motors have high reliability due to their relatively simple mechanical structure and low maintenance costs.

Widely used in industrial automation, mechanical equipment, medical equipment and other fields.

Features:

Bipolar or unipolar versions available
Our manufacturing process is backed by professional research and development
Experts in drivetrain solutions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	1.68Amp
Holding Torque	390mN.m
Resistance	1.65 ohm
Inductance	3.2 mH
Rotor Inertia	57g-cm²
Motor weight	0.9kg
Gear Reduction Ratio	10:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA 17 Ratio 10/1 Planetary Gear Stepping Motor 40mm Body For Intelligent Vehicle 1

Please click the "Get a quote" button below to tell us your requirements.
