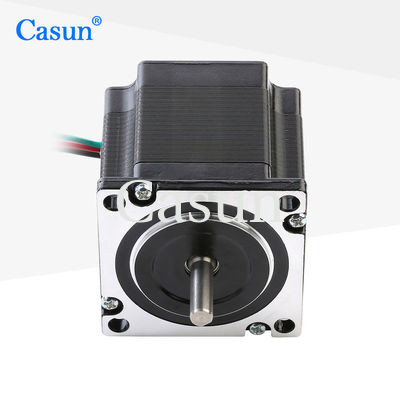

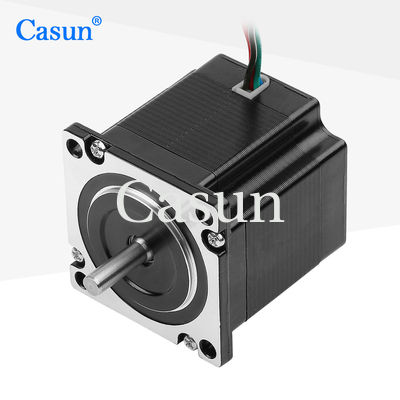

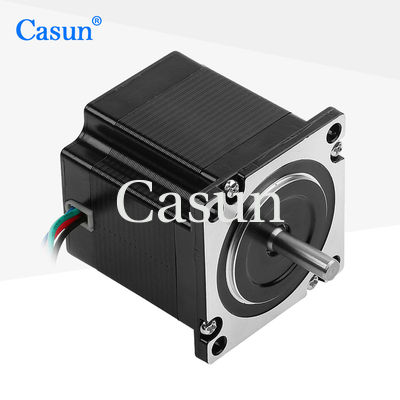

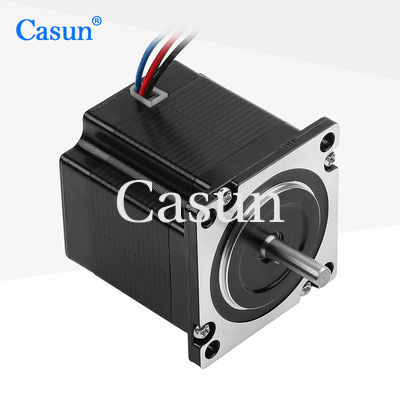

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A TEXTILE MACHINERY

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A TEXTILE MACHINERY

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	23HS22-2804S
MOQ:	1 পিসি
দাম:	$3.14-$5
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	40000+Pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

স্টেপ এঞ্জেল:

1.8°

টর্ক ধরে রাখা:

1.২৬ এন.এম.

কারেন্ট:

2.8A

মোটর দৈর্ঘ্য:

54 মিমি

খাদ:

বৃত্তাকার খাদ 21 মিমি দৈর্ঘ্য

কাস্টমাইজড:

মোটরটি কাস্টমাইজড অনুরোধের সাথে ডিজাইন এবং তৈরি করা যেতে পারে।

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 36x29x14 সেমি

বিশেষভাবে তুলে ধরা:

54MM NEMA 23 STEPPER MOTOR

57 NEMA 23 STEPPER MOTOR

Round Shaft NEMA 23 STEPPER MOTOR

পণ্য বিবরণ

This makes them more convenient in design and implementation, especially in small and medium-sized automation systems.

The structure of the stepper motor is simple, easy to maintain, and has high reliability.

Features:

High torque and high precision
Professional drivetrain solution specialist
We offer a range of stepper motors designed for different scenarios
Looking for dealers! We provide custom services and contract manufacturing
High torque and high precision

Appearance

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A TEXTILE MACHINERY 0

Dimensions

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A TEXTILE MACHINERY 1

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1.26 N.m
Resistance	0.9 ohm
Inductance	2.5 mH
Rotor Inertia	300 g-cm²
Motor weight	0.7 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
