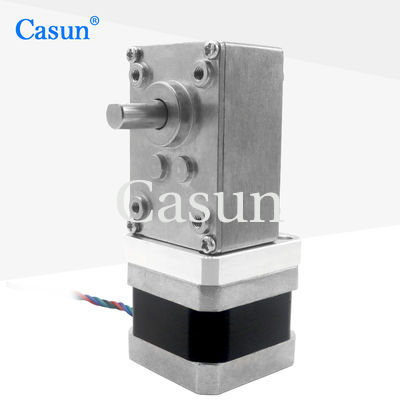

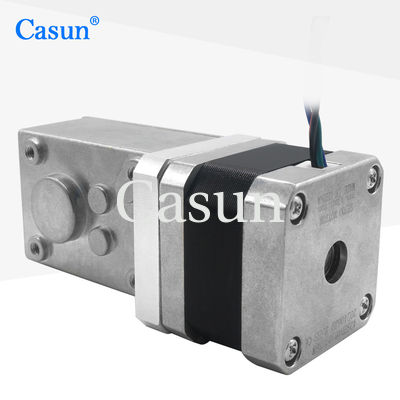

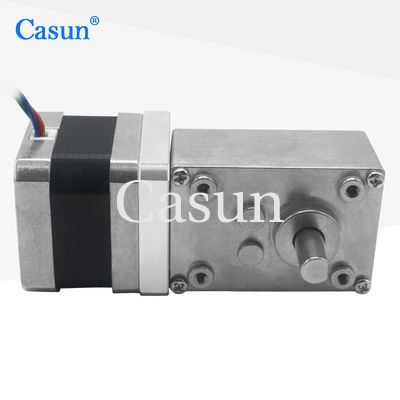

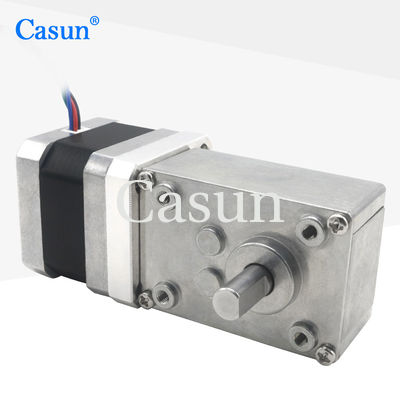

Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio

Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio

ব্র্যান্ড নাম:	Casun
মডেল নম্বর:	42SHD40109-36W
MOQ:	5 পিসি
দাম:	$45~$47
পেমেন্ট শর্তাবলী:	D/A, T/T, L/C, D/P
সরবরাহ ক্ষমতা:	10000+pcs+মাস

বিস্তারিত তথ্য

পণ্য বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

CE,ROHS,ISO

পর্যায়:

নিরোধক ক্লাস:

শ্রেণী বি

ফেজ প্রতিরোধ:

2.2 ওহম ±20%

কারেন্ট:

1.33A

ভোল্টেজ:

2.93V

শরীরের দৈর্ঘ্য:

34 মিমি

টর্ক ধরে রাখা:

270 mN.m

ওজন:

1 কেজি

খাদ দৈর্ঘ্য:

15 মিমি

প্যাকেজিং বিবরণ:

শক্ত কাগজ: 38x29x18cm

বিশেষভাবে তুলে ধরা:

Hybrid Nema 17 Stepper Motor

Worm Gear Nema 17 Stepper Motor

270mN.m Nema 17 Stepper Motor

পণ্য বিবরণ

Casun Nema 17 Hybrid Stepper Motor with Worm Gear Reducer 270 mN.m 2.93 V 36:1 Ratio

Ideal for CNC machines, 3D printers, robotics, automation systems, and other precision motion control projects, this hybrid stepper motor offers excellent positioning accuracy and durability. The worm gear design provides self-locking capability, preventing back-driving and ensuring stability in static or dynamic applications.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio 0

Motor Specifications

Step Angel	1.8°
Frame Size	34 mm
Number of Phase	2 Phase
Rated Current	1.33 Amp
Holding Torque	270 mN.m
Resistance	2.2 ohm
Inductance	3.5 mH
Rotor Inertia	30 g.cm²
Motor weight	1 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio 2

Please click the "Get a quote" button below to tell us your requirements.
